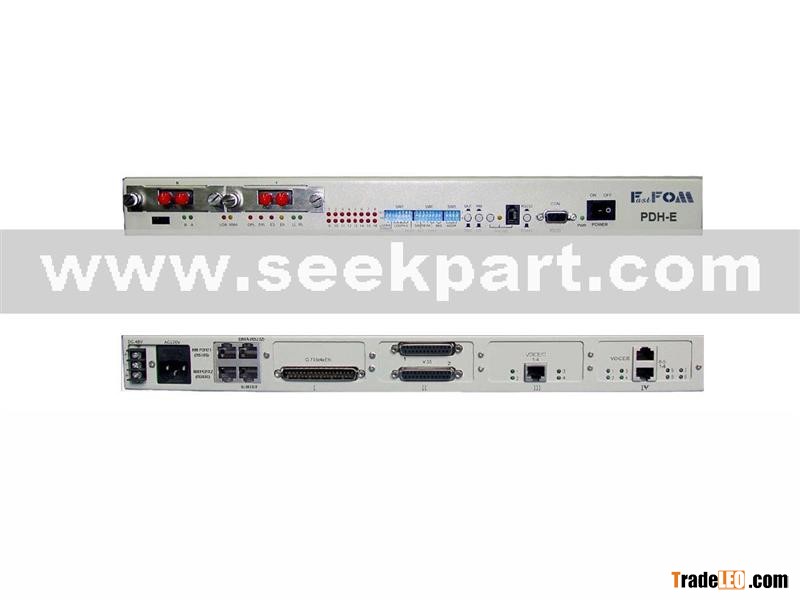

PDH multiplexer fiber optic equipment G.703 E1 v.35 fxo fxs 2m ethernet module:PDH-E www.fastfom.com sales@fastfom.com Description Integrated PDH FOM series,E1 v.35 fxo fxs RS232 RS422 RS485 module Introduce PDH-E is born with a capacity of transmission interfaces of 16E1 that can be expand to 32E1+40M. The equipment also provide various interface modules, such as E1 interface cards (4 G.703 ports, 75ohm/120ohm optional), V.35 interface cards (2 V.35 ports or 4 V.35 ports), FXO/FXS voice channel interface cards (4-8loop interfaces), E/M interface cards (4-8 2/4-wire audio interfaces), data interface cards (4-8 RS232 or RS485 data channels. They are used to transmit asynchronous data. Self-adaptation of speed can be up to 115.2K), etc. PDH-E is a suitable choice to provide voice, data and video services for cities and industrial districts. Its optional interfaces support overall business transmission of large customers and customer groups such as medium-and-small-scale enterprises, governmental organizations, schools and intellectualized villages. Open standard interfaces are employed to guarantee prompt interlinking ofvarious equipments. Features Optical path backup: With the option of 1+1 Optical Redundancy (Protection Switching), in which the transmission automatically switches to a STANDBY optical link in the event of a failure of the PRIMARY optical link. E3 or E6 switch or mandatory switch of optical path can be configured to meet requirements of network of high reliability; Network management: Furnished with network management interface (RS485) that facilitates the realization of uniform network management; Easy to configure: Combination of main system board and various function modules can produce 481216E1 optical multiplexers and multiple optional traffic interfaces to meet requirements and customized demands of different users; Various function modules: User interface modules (Nx64K V.35, V.35, FXO/FXS,RS232/RS485, etc.);Service telephone module, network management module (RS422/485, RS232, 10baseT interfaces, etc.), RS232 data channel module, warning leading-out terminal module, switching value channel module, etc. Complete functions of alarm indication: PDH-E is capable of monitoring alarm status of local and remote equipments; Various functions of loop-back test: Each E1 channel can complete local and remote loop-back independently; Transmission distance of 30 kilometers without relay (80-kilometer remote transmission equipment is prepared for your selection); Modular and compact design of the complete appliance (19" 1U structure is used); Convenient to extend capacity: PDH-E has preliminary cascade interface, which facilitates cascading (equipment stacking) to optical mutiplexer with higher E1 capacity when necessary. Technical Specification ELECTRICAL 1.Interface code rate:2.048Mbit/s+-50ppm 2.Max transmission rate:100Mbit/s 3.Choose different interface types to accord with corresponding standards Optical 1.Bit rate:100 Mbit/s 2.Line code:4B5B 3.Optical source:LD 4.Transmitter power:>=-9dBm 5.Receiver Type:PINFET 6.Receiver sensitivity:<=-38dBm(BER<=10-11) 7.Wavelength:1310 / 1550nm 8.Optical connector:FC/SC Environment 1.Power Input:AC/DC optional 2.Power consumption:=<5W 3.Operating temperature:-5oC-50oC 4.Storage temperature:-40oC-+70oC 5.Humidity:10%-90% non-condensing (No corrosive and solvent Gas, 6.no fluty dust and intense magnetic-field interference) 7.Mechanical Parameter:Standalone (19") 8.Dimension:440mm(width)x43.5mm(height)x185mm(depth) 9.Weight:1.5 kg 10.Rack Type:EIA 19"
