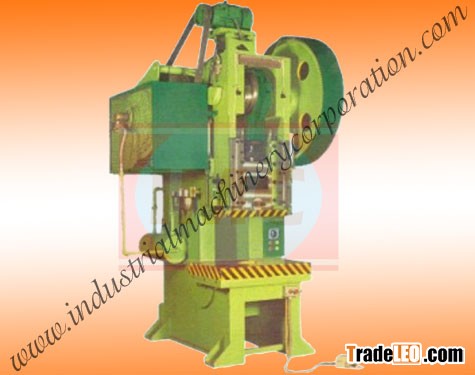

Model:TM-08
Send Inquiry
| Model | 50 Ton | 75 Ton |
| Bed Size | 20" x 30" / 508" x 762" | 16"-26"/ 406 x 660 |
| Bed to Ram | 13"/330 | 12"/305 |
| Bed Bore | 6" / 150 | 5" / 127 |
| Gear Dia | 26" / 660 | 24" / 610 |
| Fly Wheel Dia | 32" / 812 | 28" / 710 |
| Crank Shaft Dia | 4¾" / 118 | 4" / 100 |
| Back Shaft Dia | 3?" / 80 | 2¾" / 70 |
| Stroke | 3½" / 90 | 3" / 75 |
| Hole in Ram Dia Clamping | 1½" / 38mm | 13/8" / 35mm |
| No. of Stokes | 55 | 60 |
| Pully Size | 6" | 6" |
| Total Height | 82" | 76" |
| Motor Requirement | 5 H.P | 5 H.P |
| Floor to Top of Bed | 30" | 30" |
