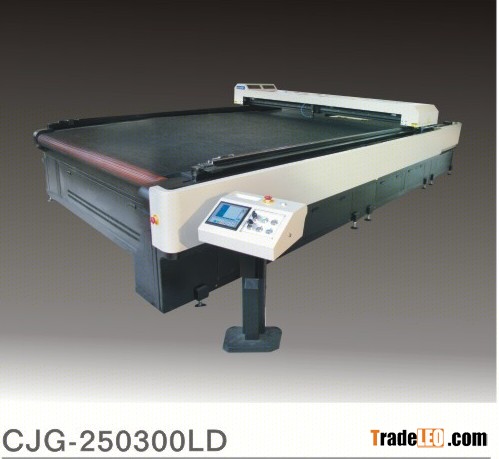

Model:CJG-250300
Large area laser fabric cutting machine
Product Feature
Close type large area laser cutting machine, design according to European standard, suits for all kind of home textile material, safe cutting process without pollution. Feeding and rolling system is optional, realize auto feeding and continuous cutting.
Technical Parameter
Laser type | Hermetic and detached CO2 laser tube |
Laser power | 80W or 100W or 150W |
Cutting area | 2500mm*3000mm Pedrail working table |
Cutting(no-load)speed | 0-30000mm/min |
Moving system | Servo system, offline control |
Power supply | AC220V±5% / 50HZ |
Format support | AI、BMP、PLT、DXF、DST etc |
Standard collocation | Top exhaust filtration system, assist mini air compressor, laser chiller |
Select collocation | Exterior exhaust system, auto feeding equipment, multi-head cutting equipment, assistant laser cutting head, feeding and rolling equipment |
