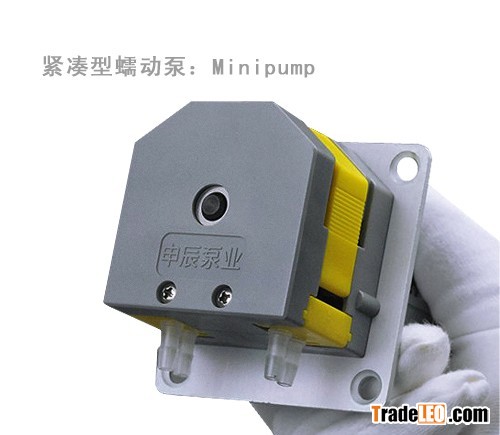

Model:MiniPump 01
Send Inquiry
Exquisite appearance, compact structure, simple operation, the price affordable
Can be used in a variety of motor drive, such as a DC motor, AC motor, step motor
It is ideal for supporting a variety of analytical instruments
MiniPump series peristaltic pump with compact and embedded design, more suitable for your supporting all kinds of instruments and equipment. Single channel and double channel arbitrary choice, application of 8 sizes tubing, greater flow range0.03- 180ml/min. Pump head buil-in France Saint-Gobain company PharMed BPT inlet tubing, long service life, theory of continuous working time15000 hours. Can use the stepper motor, DC motor, AC motor and other driving, wide application
| Driver | Pump Head | Tubing | Channel Number | Flow Rates |
| Stepping Motor 0-100rpm | Mini Pump 01 | 1x1, 2xs1, 2.5x1, 3x1, 13#, 14#, 16#, 25# | Single Channel | 0.03~75ml/min |
| Mini Pump 02 | 1x1, 2xs1, 2.5x1, 3x1 | Dual Channel | 0.03~39.5ml/min | |
| Stepping Motor 0-300rpm | Mini Pump 01 | 13#, 14#, 16#, 25# | Single Channel | 0.03~225ml/min |
| Driver | Pump Head | Tubing | Channel Number | Flow Rates |
| 24/12v DC Motor, 167rpm | Mini Pump 01 | 1x1, 2xs1, 2.5x1, 3x1, 13#, 14#, 16#, 25# | Single Channel | 0.3~122ml/min |
| Mini Pump 02 | 1x1, 2xs1, 2.5x1, 3x1 | Dual Channel | 0.3~66ml/min |
