Model:P3-1

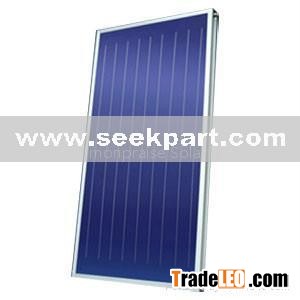

SRCC flat plate solar thermal collector
1. The Specification Data of Flat Plate Solar Collectors
Description | Specification |
Collector Type | P3 |
Dimension LxWxT | 2000 x 1000 x 100mm |
Gross Area | 2.00 m2 |
Aperture Area | 1.85 m2 |
Absorber Area | 1.76 m2 |
Weight | 38kg |
Transparent Cover |
|
Dimensions | 1970 x 970mm |
Cover material | tempered glass. |
Cover Thickness | 4mm |
Absorber |
|
Surface Treatment | Blue coating |
Absorption: | ~95% |
Thermal Emission: | ~5% |
Dimensions L x W | 1840 x950mm |
Material | Aluminum |
Construction Type | Fin & Tube(Ultrasonic Welding) |
Header Material | Copper TP2 |
Header tuber size | φ22 mm×δ0.6mm 2pcs |
Riser Material | Copper TP2 |
Riser tuber size | φ10 mm×δ0.45mm 8pcs |
|
|
Thermal Insulation |
|
Insulation Material | 25mm soft fiberglass layer + 25mm high- density fiberglass plate+15mm polyurethane foam |
Insulation Thickness | Back: 50mm |
Casing |
|
frame | Aluminum Alloy |
frame Colour | Bronze or Silver or Black Anodized |
Back Plate | Aluminum Plate, δ0.5mm |
Sealing Gasket | EPDM |
20’ container | 153pcs |
40’ container | 318pcs |
The Features of Flat Plate Solar Collector
1. Special design for oversea market. Special anodized aluminum alloy frame ensure handsome appearance and can bear high pressure without leakage.
2.50mm fiber glass insulation and EPDM seal strip to assure the solar collector can work under harsh and very cold temperature.
3.low-iron tempered glass is not easy broken and with very high transmission and low emission to ensure high solar yields.
4.Operation temperature -33°C ~ 120°C.
