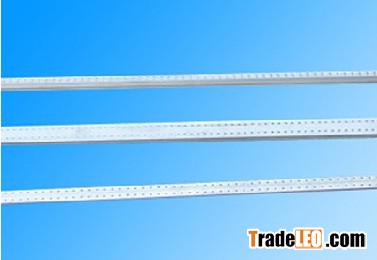

Model:BJ0001
Place of origin: suzhou, China, Brand Name: Bojie Thickness: 0.27—0.35mm
Width: 6-30mm Appication: insulating glass Surface Treatment: Coated
Color: Sliver Ultimate Strength (≥ MPa):140 Length: 5-6M
Packaging & Delivery
Packaging Detail: Cartoon Box
Delivery Detail: 30days
Specification
Application for the insualted glass
Material: 3003, 1060
Treatment: welded
Surface Polishing , Uniform Pure Aluminum
Modle No | Width(mm) | Height(mm) | packing | ||
5m packing | 6m packing | ||||
m/ Carton | m/ Carton | m/frame | |||
6A | 5.5 | 6.5 | 2940 | 3528 | 46800 |
8A | 7.5 | 6.5 | 2755 | 3306 | 35100 |
9A | 8.5 | 6.5 | 2465 | 2958 | 30420 |
10A | 9.5 | 6.5 | 2120 | 2544 | 28080 |
12A | 11.5 | 6.5 | 1820 | 2184 | 22464 |
14A | 13.5 | 6.5 | 1595 | 1914 | 18720 |
15A | 14.5 | 6.5 | 1450 | 1740 | 18720 |
16A | 15.5 | 6.5 | 1365 | 1638 | 16848 |
18A | 17.5 | 6.5 | 1160 | 1392 | 14976 |
19A | 18.5 | 6.5 | 1065 | 1278 | 13104 |
20A | 19.5 | 6.5 | 1065 | 1278 | 13104 |
