Product Description
Duct auto line I:

Dingcheng provides compact lines for small and medium sized duct factories and duct installation contractors. Compact lines can be either a stand alone system or the start of a complete automatic fabricating system. It is the starter of duct manufacturers,also it can be taken right to the consctruction site. Their control systems adopt specific software and realize one person operation,which saves labor cost.


Capabilities:
1. Alternative width for 4(1300mm) or 5(1550) material
2. Thickness: 18-27ga (0.4-1.2mm)
3. Shearing tolerance of ?0.5mm
4. Hydraulic folding diagonal tolerance of ?0.5mm
5. 0-54FPM (0-18m/min) feeding speed,fast acting back gauge

COMPACT LINE I

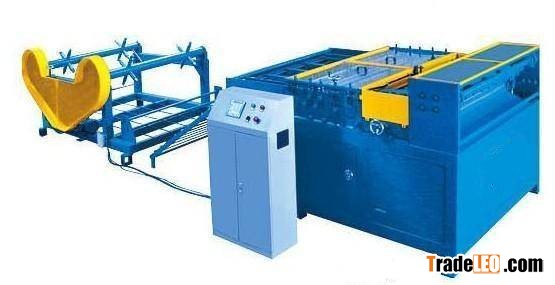

Dingcheng Compact Line I consists of cradle style decoiler, 6-roller straightener, ring-type beader and hydraulic shearer with optional PE film and slitter. It processes 4(1300mm) or 5(1550mm) galvanized steel for 18 to 27 gauge (0.4-1.2mm) material into blank for plasma cutting machine.

Model No.Max Coil WidthThickness RangeSpeedShearing ToleranceDiagonal Tolerance
DC1-1.2x13001300mm0.4-1.2mm 18-30ga0-18m/min 0-59FPM?0.5mm?0.5mm


DC1-1.2x16001600mm




Work Flow:
Coiler-straightening and beading-shearing

Product Feature
Standard Features:
1. Twin-motor driven dual-decoiling, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
2. Straightening/flattening -Air pressure controlled six(6) rolls straightenerNo adjustment required when changing from 18 to 27 gauge (0.4-1.2mm) material
3. Air pressure controlled ring type beading rolls with five beading rings-optional by remove beading rings or uplift the beading rolls
4. Accurate PLC control unit, Preset cutting size , touchscreen-easy operate
5. 0-18m/min feeding speed,fast acting back gauge,7 seconds per cutting for a 1m length sheet metal

Product Specification / Models
Model No.
DC1-1.2x1300
DC1-1.2x1600

Optional Information
- Origin : China
- Minimum Order : one set
- Packaging : Naked package
