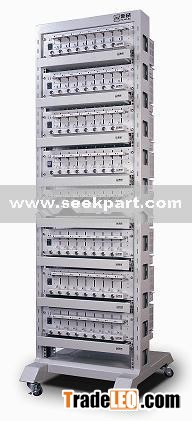

Model:CT-3008W-20V10A
Send Inquiry
| BTS-20V6A Product features: |
| Input Power AC 220V ±10% / 50Hz |
| resolution AD:15bit;DA:12bit |
| Input Resistance ≥1MΩ |
| Input Power 1408W |
| Channel Features Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure |
| Channel Control Mode Independent Control |
| Voltage Per Channel Voltage Range Charge:40mV~20V;Discharge:1.2V~20V |
| Accuracy ± 0.1% of range(Full-scale) |
| Stability 0.1% |
| Current Per Channel Current Range Charge:12mA~10A;Discharge:12mA~10A |
| Accuracy ± 0.1% of range(Full-scale) |
| Stability 0.1% |
| Power Per Channel Output Power 120W |
| Stability 0.2% |
| Time Current Response Time The Current gets to 6A Hardware Response Time is 20ms |
| Step Time Range 1min ≤Single Step Time Range≤365*24 h, |
| Time Form Support 00:00:00(h,min,s) |
| Data Recording Record Condition Time△t:(1s ~60000s) |
| Voltage△U:(40mV~20V) |
| Current△I:(12mA~10A) |
| Record Frequency 1Hz |
| Charge Charge Mode Constant Current Charge,Constant Voltage Charge, |
| Constant Current and Constant Voltage Charge |
| End Conditon Voltage,Current,Relative Time,Capacity |
| Discharge Discharge Mode Constant Current Discharge,Constant Power Discharge |
| End Condition Voltage,Current,Relative Time,Capacity |
