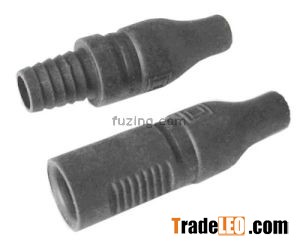

REOO PV connector system:safe, reliable, simple, flexible solution for photovoltaic modules with good quality and competitive price.

The Technology data of REOO solar connector

Electrical Features:
Rated Current:25A(TUV)
Withstanding Voltage:1000V DC(TUV)
Contact Resistance:less than 1Mohms
Protection Class: Class II

Mechanical Features:
Temperature Range: -40 oC~+85 oC
Protection Degree:IP2X, unmated; IP67, mated
Unmating Force:80 Newton
Wire Size Range:AWG14, AWG12

Material Features:
insulation Material:TPE, black
Contact Material:Copper, Tin plated
Flame Class:UL94-VO

Main Specility:
1  With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover;
2  To meet the using requirement under bad outdoor condition;
3  Adopt tight-hoop connection of cable;
4  Fatstness of male and Female points with stable auto-lock equipment which is easy to lock and open
