Customized spec. quality coaxial cables are offered at competitive prices, with prompt delivery and outstanding service. Inquire to sales (at) sonata-china (doc) com.
RG-6: 1.02mm Cu/CCS Conductor + 4.57mm PE Foam + Unbonded/Bonded/Al foil + Al /TC/BC braid + 6.80mm PVC Jacket
Specification:
1. Inner conductor: Bare Copper or CCS (Copper Clad Steel) available
2. Braid: Al, BC, or Tinned Copper available; 35-95% coverage
3. Shield: Standard, Tri-shield or Quad-shield available
4. Jacket: PVC, PE, LSF, LS0H(low smoke zero halogen jacket available
5. With/without Flooding compound or Steel Messenger

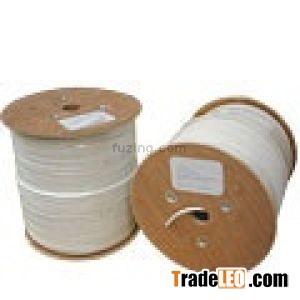

6. Packing 100m/200m/305m/reel (roll) or cut to order length.

Electrical properties:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 83%
Capacitance: 53.2 pF/m
