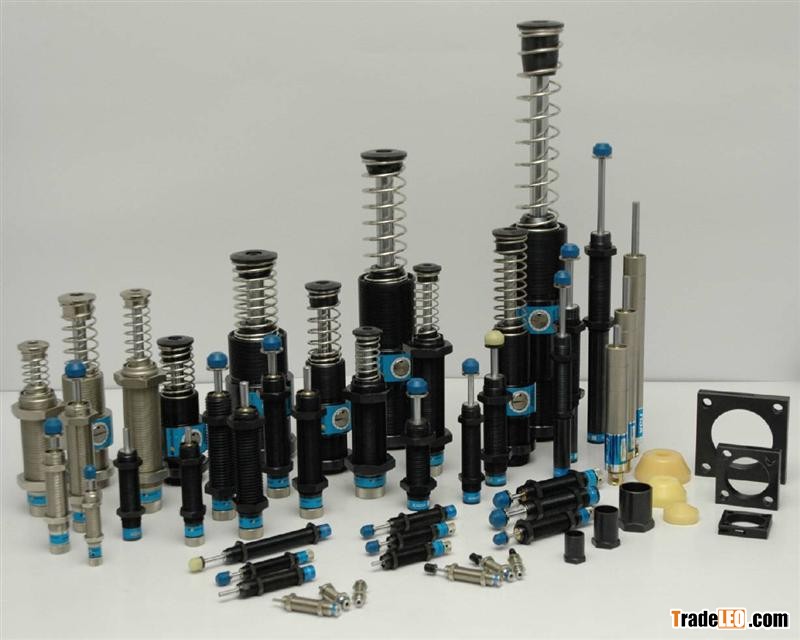

Product Description
UPA Series - How to use and application
1. Tighten enough the dial for damping adjustment with wrench when after select with optimal value
2. Confirmation whether the effective weight is in optimal range.
3. Can decrease the noise 3~7db by inserting poly pad to rod end button.
4. Total energy per hour made out based on atmosphere temperature of 20C

UPA Series - Characteristic
1. UPA series make a higher productivity for increasing accelerated velocity
2. Saving a production cost as extending the equipment life.
3. Improving working efficiency as decreasing noise in factory.
4. Improving and keeping on better quality as preventing the damage of goods
5. Max. impact velocity : 0.05~3.3 m/sec
6. Ambient temperature : -20~60C
7. Using viton seal and special oil in option: -40~120C

Product Feature
Advantage of non adjustable type

1. Non adjustable shock absorber absorb impact object shock gradually and smoothly as specially designed with multiple orifices
2. Non adjustable shock absorber make impact energy exhale to heat energy in a short time
3. Max. Impact velocity: SCA 1006 0.1~2.4m/sec
SCA 2020 0.5~4.0m/sec
SCA 2525 0.5~3.5m/sec
4. Ambient Temperature: -20~60 C

Advantage of adjustable type

1. User can adjust impact absorbed range with damping adjustable dial(360?) according to impact velocity.
2. Rapid returning Piston rod by specially designed spring for next cycle.
3. Surface of outer tube and piston rod plate with chrome that prohibit corrosion and scratch for a long life.
4. Available attachment to any position.
5. HSA shock abosorber made stop with smooth and quiet as uniquely designed multiple orifice's structure when injection mold inject as well as collide against robot with high speed

Max. impact velocity : Less than 3.5 m/sec
Max. ambient temperature : -20~60 C

Product Specification / Models
Please contact us for more information

Application
1. Automation line
2. Automation Facility
3. Transportation Facility
4. Rectilinear movement for pneumatic and hydraulic
5. Wrapping machine
6. Textile machinery
7. Press / Machine tool etc

Optional Information
- Payment : T/T or L/C
- Origin : S.Korea
- Packaging : E.S.P
- Inspection : Manufacturer's to be final
- Samples : Charge
