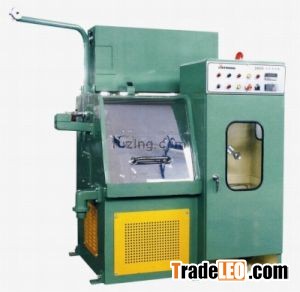

24D Copper-clad Aluminum Fine Wire Drawing Machine Technical parameter

Machine type 24D
Inlet diameter(MM) #0.5-#1.2
Outlet diameter (MM) #0.15-#0.30
Max. speed(MPM) 2000
Max. Number of Drawing dies 24
Slip ratio of m/c 13%
Fix speed capstan slip ratio 8%
Capstan Ceramic plasma
Max. Capstan dia. (MM) #194
Fix speed capstan dia. (MM) #159
frame  Cast in iron
Main machine power 11KW three phase AC- motor
Spooler power 3.7W three phase AC-motor
Correction system Automatically control
Dynamic control Double frequency converters control
Transmission method  By flat belts
Pay-off method Over head
Traversing method Flat belt + timing motor
Tension control Pneumatic balance by swing arm
Lubrication system of drawing Spray
Suitable spool (MM) #300
Capacity for take-up(KG) 100-40035
Loading & unloading method Shaft type
Service voltage 380V
Brake Electromagnetic brake
Machine dimension 2050L×1600W×1900H
Machine weight 2500
