Application

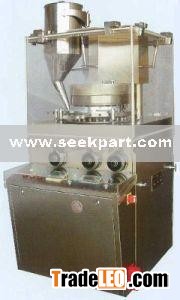

ZPY100 Rotary Tablet Press is a serial product widely used for pharmaceutical, food industry to produce all kinds round tablets and irregular tablets.
Characteristics
1. This series meets the GMP standard. Pressing chamber is utterly separated with gear system. There is no any paint in the chamber. The parts contacting with tablets are made of stainless steel or the surface of those parts are specially handled. The chamber is also sealed with or organic glass to prevent pollution.
2. The gear system, the track and the major function parts are fully lubricated by the continual and concentrated lubrication device of the ZPY100.
3. It is very convenient to observe, operate the pressure, thickness, feeding, speed adjustable hand wheels and all kinds of buttons, indicating lights and indicators are at the same side.
4. The design of ZPY100 series is reasonable. Most of parts are universal in the series. So it’s easy to manage and change the spare. The punches and dies meet the IPT standard.


Main technical specifications
Model ZPY136 ZPY129 ZPY124
Dies 36 29 24
Max. Pressure 80KN 80KN 80KN
Max. Dia. of Tablet 13mm 18mm 22mm
Max. Depth of Fill 18mm 18mm 18mm
Production Capacity 97,000pcs/h 78,000pcs/h 64,000pcs/h
Motor (kw0) 4
High (mm) With Material 1800  Without Material 1580
Cover Space (mm) 930*950
Net Weight 1400kg
