Brand:BONA
Model:B,X Series
Features of B,X series pinwheel cycloidal gear reducer:
It is an up-date transmission machine designed with the cycloid pin wheel clenching and less teeth engagement mechanism.
| Technical data: |
| Torque:25N.m-23400N.m |
| Input speed:1000r/min,1500r/min |
| Output speed:11-167r/min |
| Ratio:9-87 |
| Power:0.12KW-75KW |

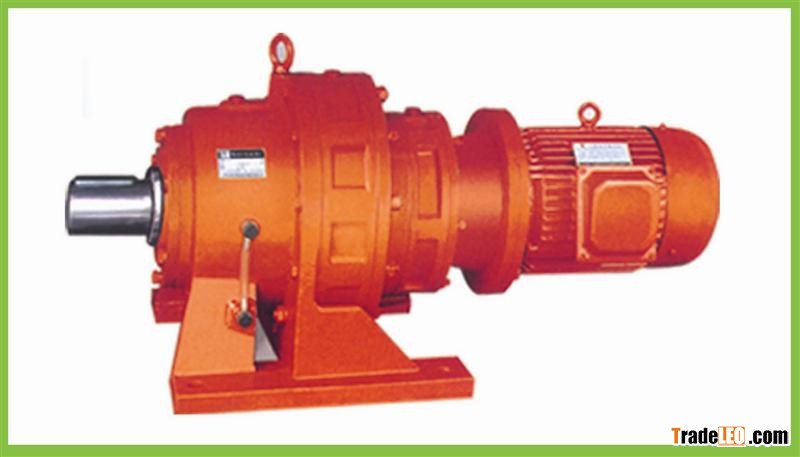

X/B series cycloid reducer
Output Speed(r/min): 0.11-16
Transmission Ratio: 1.25-450
Output Torque (N.m): top to 22920
Motor Power (KW): 0.25-90
No.1. Large ratio scope: single reduce ratio 9-87, double stage ratio99-7569, three stage ratio 8041-658503
No.2. Mounting: horizontal mounting (foot-mounted), verticalmounting (flange-mounted)
No.3. High efficiency: the efficiency is more than 90%
No.5. Compact: Being adapted epicyclicaltransmission principle, the input and output shaft are at same axis center, itis compact.
No.6. Smooth and stable run and low noise
The cycloidal pinwheel has more meshed teeth, the overlapping coefficient idbig and the machine part is stable, the vibration and noise is limited at theminimum content.
No.7. Reliable in operation and long life
The main parts are made of bearing steel through quenching treatment（HRC58-62）, it got highstrength. Meanwhile the transmission contact of part adapts rolling friction,so it is durable and long life.
Because of reasonable in design, convenient in maintenance, easy to disassembleand assemble, the minimum amount of part and simple lubrication, so it istrusted by customers deeply.
