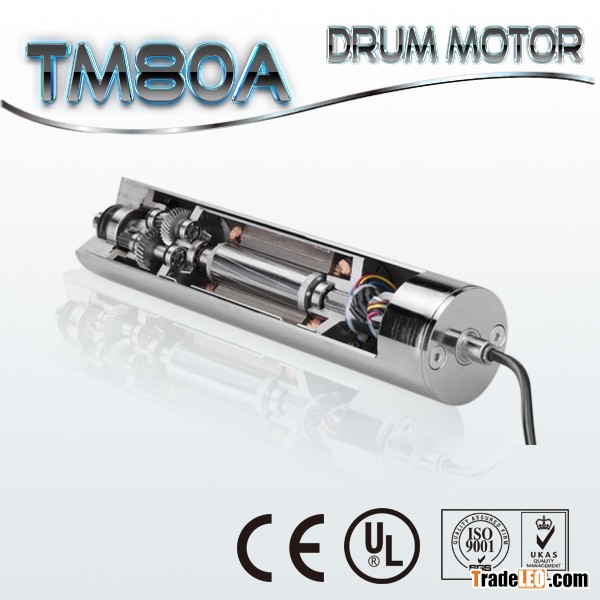

TM80A drum motor is mainly designed for limited space applications.
It is perfect for high efficiency and reliable quality. This kind of
drum motor is typically used in:
Mini X-ray machines
Package machines
Dynamic weighing equipment
Pharmaceutical handling
Food processing
Belt conveyors

All TM80A drum motors have the following characters：

Drum motor shell

Mild steel crowned shell treated with anti-rust oil Food grade drum motor shell can be supplied in Stainless steel-304

Gear transmission

Gears machined and honed to AGMA/DIN 6 standards to ensure low noise Die cast aluminium gearbox

Motor

Common global voltages at 50 Hz or 60 Hz Motor windings insulation class F All motors with thermal protection Oil cooled electrical motor Cable length minimum 1.2 meters outside shaft

Sealing system

Double shaft sealing system Sealing system-degree of protection IP 66/67

Oil

Pre lubricated with oil, Oil change recommended every 50,000 hours of operation

Other items

To be used in the horizontal position only Belt speed and face width (L) on request Non-standard drum motors are available on request. Conformity with CE directive 2006/95/EC
