Model:HXG Sseries/ TA series
Description:

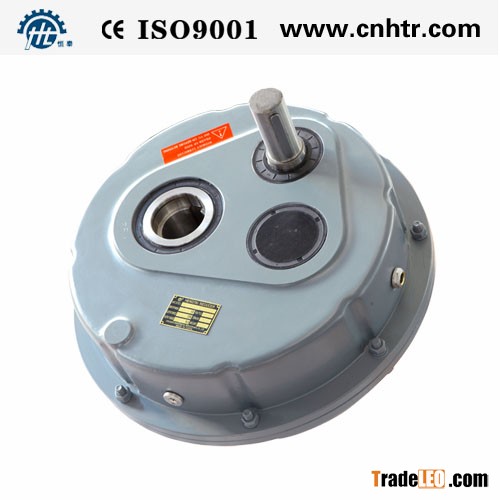

The HXG TA series - Shaft mounted reducer has long established itself in the industry until becoming a best seller for the quarry and mine applications where absolute reliability and low maintenance are key factors.
Also appreciated is the backstop option that prevents backdriving in case of incline conveyors.
Model: HXG30-30, HXG35-35, HXG40-40, HXG40-45, HXG45-45, HXG45-50, HXG45-55,
HXG50-50, HXG50-55, HXG50-60, HXG60-60, HXG60-70,HXG70-70, HXG70-85,
HXG80-80, HXG80-100, HXG100-100, HXG100-125, HXG125-125, HXG125-135.
Ratio: 5:1, 10:1,12.5:1, 15:1, 20:1, 25:1, 31:1,
Power Range: 1.1kw-193kw
Allowable torque: 180Nm-17000Nm
| Type | Torque Nm |
| TA30/HXG30 | 150 |
| TA35/HXG35 | 400 |
| TA40/HXG40 | 900 |
| TA45/HXG45 | 1350 |
| TA50/HXG50 | 2100 |
| TA60/HXG60 | 3500 |
| TA70/HXG70 | 4900 |
| TA80/HXG80 | 6600 |
| TA100/HXG100 | 10500 |
| TA125/HXG125 | 16000 |
Input Speed: 750rpm-1500rpm
Output Speed: 25rpm-300rpm
Mounting position: shaft mounted
Output shaft: Keyed hollow shaft.
Gearcase housing: QT Ductile Iron Housing suitable for outdoor installation
Backstop: Available on all frame sizes With/without anti-back Backstop,
Torque arm: Available on all frame sizes with torque arm.
Note: Same mounting install dimensions to Bonfiglioli TA series shaft mounted gear motors
From TA 30-TA125,
TA30-30, TA35-35, TA40-40, TA40-45, TA 45-45, TA 45-50, TA 45-55,
TA 50-50, TA 50-55, TA 50-60, TA 60-60, TA 60-70, 70-70, TA 70-85,
TA 80-80, TA 80-100, TA 100-100, TA 100-125, TA 125-125, TA 125-135.
We will select the most appropriate gear unit and gear unit combinations according to your working situation,welcome to contact us for more details.
