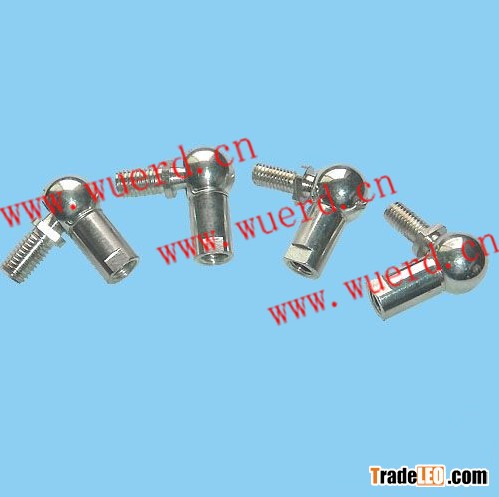

DIN 71802 ball joints , with threaded ball stud

Form

Steel

• Tensile strength class 5 (500N/mm2)
• zinc plated, colourless passivated
Ball
Steel
• hardened
• Ball seat lubricated

Ball joints DIN 71802 consist of a ball socket DIN 71805 and a ball stud DIN 71803.

The angle of rotation  for the type with safety catch (Types CS, BS) ist 15°, without safety clip (Types C,  B) is 18°.

For assembly the ball is pushed through the clip which acts as a retainer. Should the retaining force (see pull-off force in the table above) between ball and socket not be sufficient, this can be increased by adding a safety catch, which can easily be fitted.

To protect the ball point, a dust cap can be added.

The hexagon nut is part of the ball joints.

Dust caps have to be ordered seperately.
