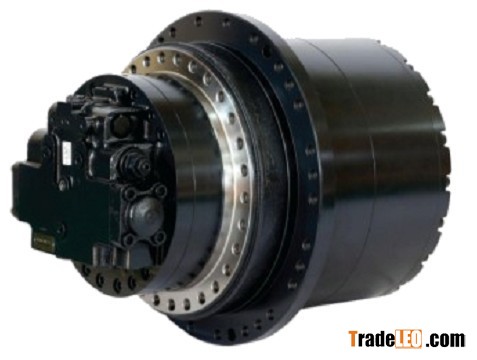

Nebtesco Final Drive Device - Travel Motor (GM09, GM18, GM21, GM24, GM35)
GM final drive, track drive, hydraulic motor, track gearbox, travel motor, travel drive
Suitable for Crawler Cranes, Drilling Machines and Aerial Platforms Applications
All in one Compact Design
- Reduction Gear
- Hydraulic Motor
- Parking Brake
- Counter Balance Valve
- two speed motor
| SPECIFICATIONS |
| Item | Unit | GM04VA | GM06VA | GM10VA | GM21VA | GM38VB | | Max.Output Torque | N-m | 4,020 | 5,590 | 9,610 | 20,600 | 37,300 | | [ kgf-m ] | [ 410 ] | [ 570 ] | [ 980 ] | [ 2,100 ] | [ 3,800 ] | | Max. Output Speed | rpm | 60 | 60 | 60 | 60 | 55 | | Max. Working Pressure | MPa | 24.5 | 24.5 | 31.4 | 34.8 | 35 | | [ kgf/cm2 ] | [ 250 ] | [ 250 ] | [ 320 ] | [ 355 ] | [ 357 ] | | Max. Motor Displacement | cm3/rev | 21.4 | 27.5 | 55.8 | 82.8 | 138.5 | | Applicable Vehicle Weight | ton | 2.5～4.5 | 3～5.5 | 6～8 | 10～14 | 18～25 | |
| | | |
| Item | Unit | GM60VA
（RG6.5F） | GM70VA
（RG7.5D） | GM85VA
（RG10T） | | Max.Output Torque | N-m | 56,600 | 66,200 | 84,800 | | [ kgf-m ] | [ 5,770 ] | [ 6,750 ] | [ 8,640 ] | | Max. Output Speed | rpm | 45 | 40 | 40 | | Max. Working Pressure | MPa | 34.3 | 34.3 | 34.3 | | [ kgf/cm2 ] | [ 350 ] | [ 350 ] | [ 350 ] | | Max. Motor Displacement | cm3/rev | 290.7 | 273.5 | 290.7 | | Applicable Vehicle Weight | ton | 30～35 | 36～40 | 40～48 | If you are interested, please contact me. mail: salescathy07 at hotmail dot com |
