Brand:lycrusher
Model:EP conveyor belt

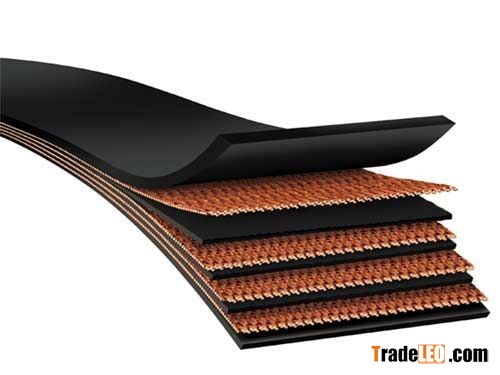

Heat-resistant conveyer belt
Specifications of Conveyer belt
Conveyor Belt:
1) Profession manufacturer;
2) Types:NN, EP, COTTON Conveyor belt, Chevron Conveyor belt, Heast resisitant
Conveyor belts are used in a wide variety of material transport application such as manufacturing, food processing and heavy industry. Our company provide many kinds of rubber conveyor belts with superior quality and competitive price.You can choose the parameter of each term in the above table as you need.And if you have some special demand,please contact us,we may provide you with the best service.
- Type: Cotton; Nylon(NN100,NN150,NN200); EP100,EP150,EP200,EP250,EP300
- Tensile strength: 8MPa,10MPa,12MPa,14MPa,16MPa,18Mpa
- No.of plies: 2-6
- Cover thickness(mm): Top:3-18; Bottom:1.5-10
- Belt width(mm): 300-1400
- Heat resistance: 150°C-180°C (EP100,EP150,EP200,EP250)
- Others: chevron belt
Technical data of Conveyer belt
Cover rubber property and grades | ||||
Test item | Technical Parameters | |||
| H | D | L | |
Tensile strength | Mpa>= | 24 | 18 | 15 |
Elongation at Break | %>= | 450 | 400 | 400 |
Abrasion/Wear volume | mm3<= | 120 | 100 | 200 |
Adhesion & Elongation of the Belt | |||||
belt carcass | Adhension | Elongation | |||
Between Plies N/mm | Between Rubber and Carcass | Longitudinal %>= | Longitudinal | ||
Rubber | Rubber thickness | ||||
Cotton | >=3.2 | >=2.1 | >=2.7 | 10 | 4 |
NN | >=4.5 | >=3.2 | >=3.5 | 10 | 4 |
EP | >=4.5 | >=3.2 | >=3.5 | 10 | 4 |
Longitudinal Tensile Strength of Rubber Cloth (per ply) N/mm | |||||
Cotton | NN | EP | |||
CC | 100—500 | NN100 | >=98 | EP100 | >=98 |
NN150 | >=147 | EP150 | >=147 | ||
NN200 | >=196 | EP200 | >=196 | ||
TC | 100—500 | NN250 | >=245 | EP250 | >=245 |
NN300 | >=294 | EP300 | >=294 | ||
