applicated to concrete vibrator;car;motocycle;garden machine and every kind of flexible transmission used equipment

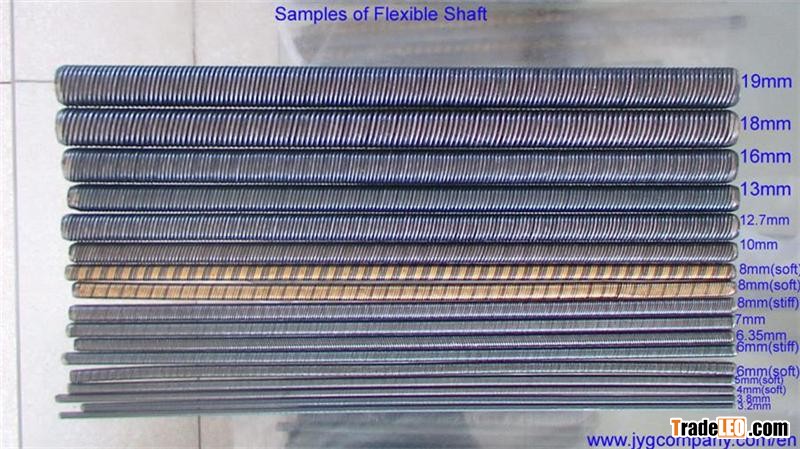

Description: flexible shaft ,concrete vibrator shaft
Structure: 70#~75# high-carbon steel wire
Direction of Twist: Levorotation and dextrorotation
Applicable Scope: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools, gardening machinery mower, and various mechanical flexible rotations.
Function: Smooth, flexible, highly-elastic, and wear resistant |
Technical Parameters
Diameter (mm) | Tolerance (mm) | Number of Layers | Loading Moment
(N · m)
(Sample 500mm Long) | Weight
(kg/ 100m) | 2.0 | +0.02
-0.02 | 3/5 | 0.8 | 1.8 | 2.5 | 3/5 | 1.0 | 2.8 | 3.2 | 3/5 | 1.3 | 4.6 | 3.8 | 3/5 | 1.5 | 6.5 | 5.0 | +0.00
-0.05 | 3/4/5 | 1.8 | 11.3 | 6.0 | 3/4/5 | 2.4 | 16.2 | 6.5 | 4/5/7 | 2.9 | 18.7 | 8.0 | | 4/5/6/7 | 7.5 | 28.8 | 10 | 4/5/6/7 | 22.5 | 45.5 | 12 | 4/5/6/7 | 39.0 | 66.5 | 13 | 4/5/6/7 | 50.5 | 77.5 | 16 | 4/5/6/7 | 115.0 | 114 | 18 | 4/5/6/7 | 160 | 145 | The flexible shafts not listed in the chart can be customized |
|
