Brand:Ruiao
Model:TEZ series
HEBEI RUIAO MACHINE TOOL ACCESSORIES PRODUCING CO LTD

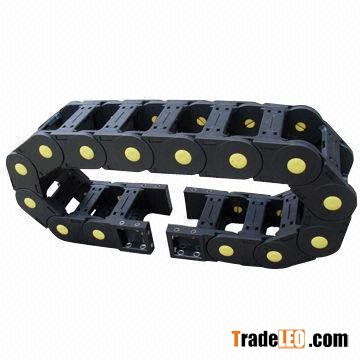

Flexible cable energy chain .
(1) cable energy chain Suitable for use in reciprocating motion of the occasion, be able to built-in cable, tubing, trachea, traction and protection of water pipes, etc. play a role.
(2) The cable energy chain of each section can be open, easy to install and repair. Movement, low noise, wear-resistant, high-speed movement.
(3) The cable energy chain has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and windows machines, injection molding machines, mechanical hands, overweight transportation equipment, automated warehouses.
sizes for reference
| engineering plastic cable energy chain | ||
| Model | inside height*inside width | bending radius(mm) |
| TP07 | 7*7 | 28 |
| TP10 | 10*10 | |
| 10*15 | ||
| 10*20 | ||
| TP15 | 15*15 | 28;38 |
| 15*20 | ||
| 15*30 | ||
| 15*40 | ||
| 15*50 | ||
| TP18 | 18*18 | 38;40;48 |
| 18*25 | ||
| 18*35 | ||
| 18*40 | ||
| 18*50 | ||
| Weight bearing cable energy chain | ||
| Model | inside height*inside width | bending radius(mm) |
| TEZ25 | 25*25 | 55;75;100;125;150 |
| 25*38 | ||
| 25*50 | ||
| 25*57 | ||
| 25*77 | ||
| 25*103 | ||
| TEZ35 | 35*50 | 75;100;125;150;175;200;250 |
| 35*75 | ||
| 35*100 | ||
| 35*125 | ||
| 35*150 | ||
| 35*175 | ||
| TEZ45 | 45*50 | 75;100;125;150;175;200;250 |
| 45*75 | ||
| 45*100 | ||
| 45*125 | ||
| 45*150 | ||
| 45*175 | ||
| TEZ56 | 56*100 | 150;200;250;300;350;400;500 |
| 56*125 | ||
| 56*150 | ||
| 56*175 | ||
| 56*200 | ||
| 56*250 | ||
| TEZ65 | 65*100 | 150;200;250;300;350;400;500 |
| 65*125 | ||
| 65*150 | ||
| 65*175 | ||
| 65*200 | ||
| 65*250 | ||
| TEZ80 | 80*100 | 200;250;300;350;400;500 |
| 80*125 | ||
| 80*150 | ||
| 80*175 | ||
| 80*200 | ||
| 80*250 | ||
| 80*300 | ||
| we also have the steel material cable energy chain , many size for your choosing , if you need the cable energy chain in special applications,here recommend you the steel type | ||
thanks for your attention on our cable energy chain, we have our own factory . i believe our price is the most reasonable upon its well done work.
if you have any questions , pls feel free to send me the inquiry information.
take my best regards to you .
violet
