Brand:IDEAL
Model:TL-45

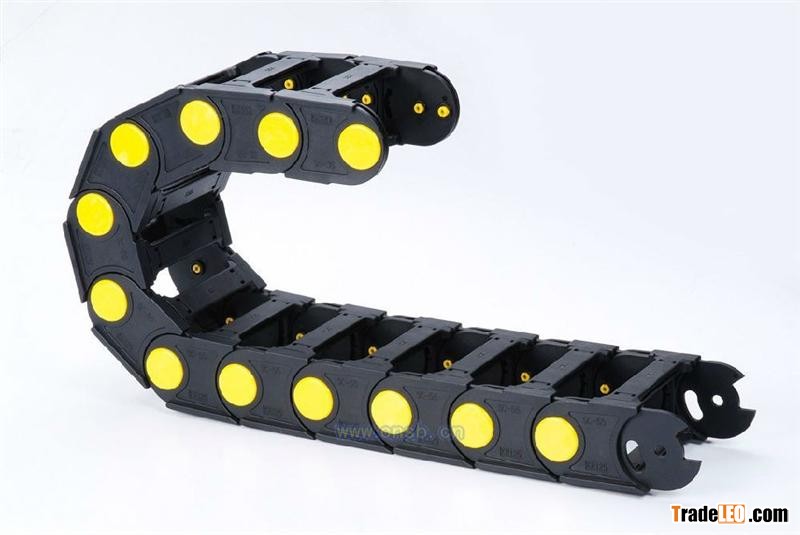

Electrical cable carrier for cutting mill.
(1) Suitable for use in reciprocating motion of the occasion, be able to built-in cable, tubing, trachea, traction and protection of water pipes, etc. play a role.
(2) The towline of each section can be open, easy to install and repair. Movement, low noise, wear-resistant, high-speed movement.
(3) The towline has been widely used in CNC machine tools, electronic equipment,
stone machinery, glass machinery, doors and windows machines, injection molding machines,
mechanical hands, overweight transportation equipment, automated warehouses.
Model |
Inside Diameter |
Outside Diameter |
Pitch(mm) |
Pitch(mm) |
Non-support Length(m) |
TL1-45.50 | 45×50 | 67×81 | 75,100, 125,150, 200,250,300 | 70 | 4 |
TL1-45.60 | 45×60 | 67×91 | 70 | 4 | |
TL1-45.75 | 45×75 | 67×106 | 70 | 4 | |
TL1-45.100 | 45×100 | 67×131 | 70 | 4 | |
TL1-45.125 | 45×125 | 67×156 | 70 | 4 | |
TL1-45.150 | 45×150 | 67×181 | 70 | 4 | |
TL1-45.175 | 45×175 | 67×206 | 70 | 4 | |
TL1-45.200 | 45×200 | 67×231 | 70 | 4 | |
Type | Bridge type, Bottom lids can be opened | ||||
TL-2 45 Series moving cable track
Model |
Inside Diameter |
Outside Diameter | (R)Bending radius |
Pitch(mm) | Non-support Length(m) |
TL2-45.50 | 45×50 | 66×82
| 100.125 | 68 | 3.5 |
TL2-45.60 | 45×60
| 66×93
| 68 | 3.5 | |
TL2-45.75 | 45×75
| 66×108
| 68 | 3.5 | |
TL2-45.100 | 45×100
| 66×133
| 68 | 3.5 | |
TL2-45.125 | 45×125
| 66×158
| 68 | 3.5 | |
TL2-45.150 | 45×150
| 66×183
| 68 | 3.5 | |
TL2-45.175 | 45×175
| 66×208
| 68 | 3.5 | |
TL2-45.200 | 45×200
| 66×233
| 68 | 3.5 | |
TL2-45.250 | 45×250
| 66×288
| 68 | 3.5 | |
TL2-45.275 | 45×275
| 66×308
| 68 | 3.5 | |
TL2-45.300 | 45×300
| 66×333
| 68 | 3.5 | |
Type | Bridge type, Bottom lids can be opened | ||||
