Chains For Ash Handler
2016-10-24 20:56  Views:33
Price:Negotiable
Model:26~38
Send Inquiry

Detailed introduction to Chains For Ash Handler:

Chains For Ash Handler

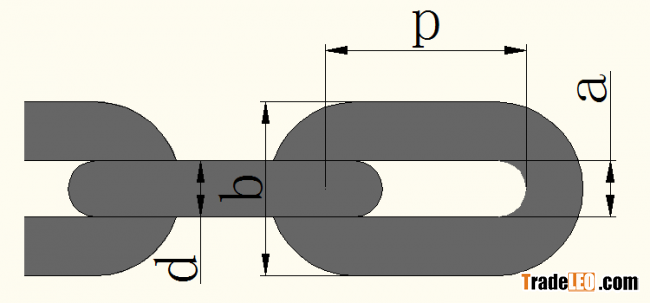

Size Diameter Pitch Width Weight Breaking Force Elongation at Fracture
Inside Outside Grade B Grade C
d×p/[mm] d/[mm] p/[mm] a min b max kg/m [KN] [KN] min[%]
26×91 26 91 35 94 14.3 670 850 10
26×92 26 92 30 86 13.7 670 850 10
26×100 26 100 31 87 13.3 670 850 10
30×108 30 108 34 98 18 890 1130 10
30×120 30 120 36 102 17.6 890 1130 10
34×126 34 126 38 109 22.7 1140 1450 10
34×136 34 136 39 113 23.8 1140 1450 10
38×137 38 137 42 121 29 1420 1810 10
