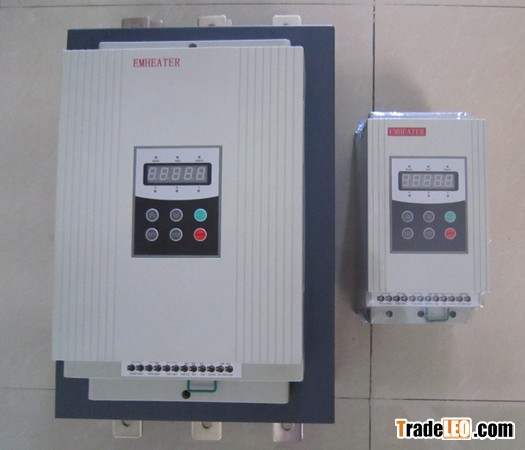

EM-GJ3-series Soft  Starter  is  a  new  type  start-up  equipment  which  integrates electric  force  and  electronic  techniques  ,computer   technique and modern  control theory. It is the new generation product to replace the conventional Star-delta Starter, Self-coupling voltage-drop Starter and Magnetic control voltage-drop Starter.

Description：

1. Advanced soft starter type: “voltage control type”  and “current limiting type”
2. capacity to Motor effectively, so it could save the cost.
3. Intelligent, digital and single chip control。
4. Man-machine conversation function。
5. Delay starting function. Operation current displayed。
6. Failure self-diagnosis。
7. Natural wind cooling. Space saving。
8. Can reduce the starting stress of motor and other loading equipments, so that lengthen their service life.
9. The function of soft stopping can solve effectively the surging problem of inertia system when stopping.
10. The perfect and reliable protection features, can give the effective protection to the operator’s safety as well as the motor and matched equipments. Such over voltage; over current, over load, over heat, short circuit , lower voltage, input or output phase failure; three phase imbalance, starting time over long protection etc.
11. The application of intelligent and network technique make the EM-GJ3 type Soft Starter meet the high -tech development of Electrical force automated technique effectively.
12. The reliable function and quality is the basic of the best service. even more, we can supply the special designing  and functions of product matched to your need ,and ,the timely and perfect application consulting service.

13. Model No.	Voltage	Power	Current	G.W	Packing size	Installation dimension
    	(V)	(KW)	(A)	(KG)	L/W/H(mm)	H/W/D(mm)
    EM-GJ3-5d5	400	5.5	11	5	320/185/207	247/129/Ф6
    EM-GJ3-7d5	400	7.5	15	5	320/185/207	247/129/Ф6
    EM-GJ3-011	400	11	23	5	320/185/207	247/129/Ф6
    EM-GJ3-015	400	15	30	5	320/185/207	247/129/Ф6
    EM-GJ3-018	400	17	37	5	320/185/207	247/129/Ф6
    EM-GJ3-022	400	22	43	5	320/185/207	247/129/Ф6
    EM-GJ3-030	400	30	60	5	320/185/207	247/129/Ф6
    EM-GJ3-037	400	37	75	5	320/185/207	247/129/Ф6
    EM-GJ3-045	400	45	90	5.5	320/185/207	247/129/Ф6
    EM-GJ3-055	400	55	110	5.5	320/185/207	247/129/Ф6
    EM-GJ3-075	400	75	150	5.5	320/185/207	247/129/Ф6
    EM-GJ3-090	400	90	180	21	570/310/240	380/196/Ф8
    EM-GJ3-115	400	115	230	21	570/310/240	380/196/Ф8
    EM-GJ3-132	400	132	264	21	570/310/240	380/196/Ф8
    EM-GJ3-160	400	160	320	21	570/310/240	380/196/Ф8
    EM-GJ3-185	400	185	370	21	570/310/240	380/196/Ф8
    EM-GJ3-200	400	200	400	21	570/310/240	380/196/Ф8
    EM-GJ3-250	400	250	500	26.5	600/340/300	470/260/Ф8
    EM-GJ3-280	400	280	560	26.5	600/340/300	470/260/Ф8
    EM-GJ3-320	400	320	640	26.5	600/340/300	470/260/Ф8
    EM-GJ3-400	400	400	800	26.5	670/380/290	530/320/Ф10
    EM-GJ3-450	400	450	900	26.5	670/380/290	530/320/Ф10
    EM-GJ3-500	400	500	1000	40	740/450/300	575/400/Ф10
    EM-GJ3-600	400	600	1200	40	740/450/300	575/400/Ф10
