Brand:Lanxing
Model:WZT60-III-1.5A
Send Inquiry

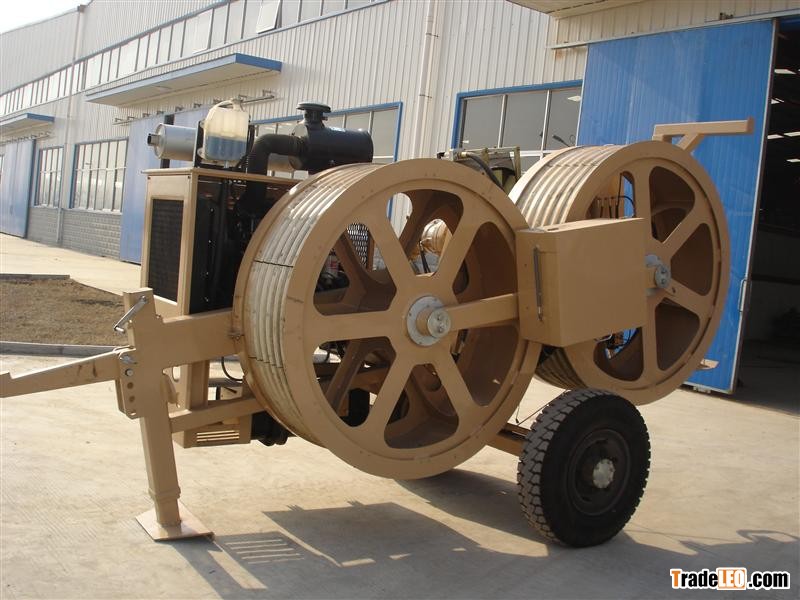

1, single bridge structure trailer
2, wheel groves made up of high resistance interchangeable nylon sectors
3, the max tension/pull for conductor-stringing operation can be preset and the volume can be read on the gauge
4, string two conductors at the same time, both bull wheels can work separately and the both bull wheels can be used as one or one work and the other stops.
5, used as a puller. Double brake protection to ensure safe operation.
6, connected with the hydraulic reel winder to let the two parts work together.
7, pre-heat unit to ensure the motor can be easily started in the cold weather (can be chosen)
| Type | WZT60-Ⅲ-1.5A | |
| Work as tensioner | Max tension(kn) | 60 |
| Max continuous tension(kn) | 50 | |
| Max pull speed(km/h) | 5 | |
| Work as puller | Max pull(kn) | 50 |
| Max pull speed(km/h) | 2 | |
| Bullwheel dia (mm) | 1200 | |
| Groove amount | 5 | |
| Groove space(mm) | 55 | |
| Max reliable conductor dia (mm) | 40 | |
| Overall dimension(mm) | 4540*1870*2640 | |
| Dead weight(kg) | 3400 | |
| Engine | Cummins water-cold | |
| Reducer | Bonfiglioli made in Italy | |
| Main hydraulic pump | Rexroth made in Germany | |
| Hydraulic meter | Wika made in Germany | |
| Main hydraulic motor | Rexroth made in Germany | |
| Hydraulic valve | Atos made in Italy | |
| Fast tie-in | Ind-click made in Italy | |
| Hydraulic pipeline system | Manuli made in Italy | |
| Electrical system voltage | 24v |
