Model:10×40-48×152

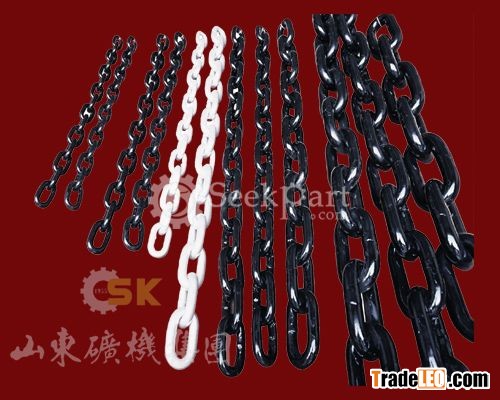

These products have many types:high strength round link chain;lifting chain;deck lashing chain and defending chain.
The high strength round link chain is used on scraper conveyor, transfer conveyor series, and shearer.
The lifting chain,deck lashing chain and defending chain can be used for cement, shipping, sea channel, dock, transportion ect. In addition, our factory manufactures various types of chains according to BS, NACM, ASTM, DIN, JIS standards ect. And these chains have been exported to many countries.
Technical parameter of high strength mine chain
Size d﹡p (mm) | diameter of straight line (mm) | perferred pitch(mm) | min inner width (mm) | max outer width(mm) | radius of arch(mm) | trial loading(KN) | min breaking load(KN) | max elongation on the test(﹪) | min elongation on breaking load(﹪) | quality grade |
10×40 | 10±0.4 | 40±0.5 | 12 | 34 | 15 | 85 | 110 | 1.4 | 12 | B |
100 | 130 | 1.6 | 12 | C | ||||||
14×50 | 14±0.4 | 50±0.5 | 17 | 48 | 22 | 150 | 190 | 1.4 | 12 | B |
200 | 250 | 1.6 | 12 | C | ||||||
18×64 | 18±0.5 | 64±0.6 | 21 | 60 | 28 | 260 | 320 | 1.4 | 12 | B |
330 | 410 | 1.6 | 12 | C | ||||||
22×86 | 22±0.7 | 86±0.9 | 26 | 74 | 34 | 380 | 480 | 1.4 | 12 | B |
490 | 610 | 1.6 | 12 | C | ||||||
26×92 | 26±0.8 | 92±0.9 | 30 | 86 | 40 | 540 | 670 | 1.4 | 12 | B |
680 | 850 | 1.6 | 12 | C | ||||||
30×108 | 30±0.9 | 108±1.0 | 34 | 98 | 46 | 710 | 890 | 1.4 | 12 | B |
900 | 1130 | 1.6 | 12 | C | ||||||
34×126 | 34±1.0 | 126±1.2 | 38 | 109 | 52 | 900 | 1140 | 1.4 | 12 | B |
1160 | 1450 | 1.6 | 12 | C | ||||||
38×137 | 38±1.1 | 137±1.4 | 42 | 123 | 58 | 1450 | 1810 | 1.6 | 12 | C |
42﹡ | 110﹡ | |||||||||
42×146 | 42±1.3 | 146±1.5 | 46 | 135 | 64 | 1770 | 2220 | 1.6 | 12 | C |
46﹡ | 115﹡ | |||||||||
48×152 | 48±1.5 | 152±1.5 | 62 | 163 | 78 | 1850 | 2900 | 1.6 | 12 | C |
56﹡ | 127﹡ |
