Brand:RBK
Model:2BHB810 H07

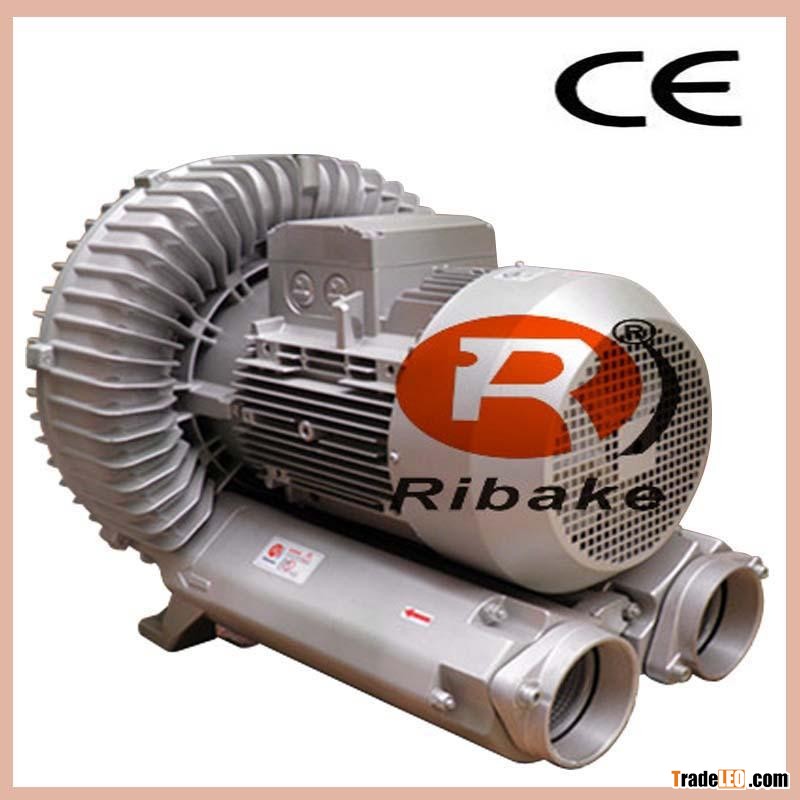

2BHB high pressure ring blower
MODEL DATA
order NO. | Output (KW) | current (A) | Max airflow (m3/Hr) | Max vacuum (mbar) | Max P (mbar) | weight (KG) | sound (DB) |
2BHB810-H07 50/60Hz | 4 4.6 | 9.5Δ/ 5.5Y | 530 620 | 200 160 | 200 160 | 54 | 63 |
APPLICATION
They are used in the manufacturing of textiles, measuring, medical and laboratory equipment, printing and paper handling, vacuum packaging, waste water treatment, reprographics industry, aeration of fluids, pneumatic conveying, plastic industry, industrial ovens, vacuum cleaners, & air pollution monitoring equipment， food-processing, beverage industry, smoke extraction industry, semiconductors and electronic equipments, soil remediation, thermoforming, papermaking and paper conditioning, filling of bags/bottles/hoppers…
- easy installation
- low noise level
- no vibration and therefore complete dynamic stability
- minimal maintenance
- Simple Maintenance
- 100% Oil Free Air
- Suitable to environment protection
- Small size
BHB series operating principle
The gas is taken in through the inlet 1, as it enters the side channel 2, the rotating impeller 3 imparts velocity to the gas in the direction of rotation. Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase.Everyrotation adds kinetic energy, resulting in the further increase.Everyrotation adds kinetic energy, resulting in the further increase of the pressure along the side channel. The side channel narrow at the rotor, sweeping the gas off the impeller blades and discharging it through the outlet silencer 4 where it exits where it exits the side channel blower.
Packing:
[For small power]: Use standard export carton box.
[For big power]: Use Pressure Wood Carton Box.
QUALITY POLICY
Ribake has been CE/CCC compliant since 2005. | |
Quality control is done at following levels. | |
A. | RAW MATERIAL: Incoming raw materials, such as aluminum, brass, S.S. alloy steel etc are tested to confirm chemical compositions and manufacturing flaws. only those raw material are approved, which meets specified parameters. Elastomeric components, plastic components, metal components are routinely checked for dimensional tolerances and working properties. Those meeting quality requirements are accepted |
B. | PRODUCTION: Well laid procedures are adopted during various productions levels to monitor its proper manufacturing to meet demanding accuracy. Production force is trained to use various gauging and measuring instruments to ensure production of trouble free components. |
C. | ASSEMBLY: Again well defined assembly procedures with properly trained workforce aided by tooling and fixtures ensure quality products. |
D. | TESTING & ACCEPTANCE: All products during and after assembly goes through well defined testing with help of Pressure/Flow/Sound/Humidity/Current/ Speed/Efficiency/etc measuring state of Art instruments. |
| |
All prototypes and sample components are routinely checked for Endurance Tests, Life Expectancy Tests and Protection level tests. | |
