【Summarize】

The Ci-gf110/120 series is designed for use in optical GE Genius fieldbus networks. Feature with data rate up to 153.6K,35mmDIN rail mounting, redundancy power input(9V~30VDC),relay output alarm.

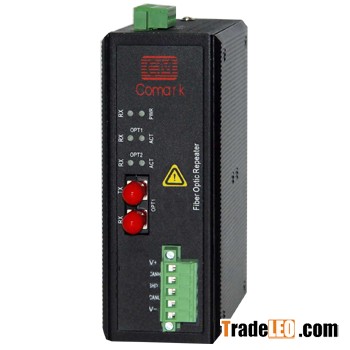

Ci-gf110 contains one fiber optic transceiver and one electrical interface.Ci-gf120 contains two fiber optic transceivers and one electrical interface. The repeaters provide fiber optic connection in point to point, star, daisy chain topologies networks.

【Specifications】

Electrical interface

• Signal type: GE Genius.
• Data Rate: 153.6K
• Wire Cable Connection: 5-pin Pluggable Screw Terminal
• Wire End Termination: None

Optical interface

• Wave length: 850nm、1310 nm、1550nm
• Fiber type: multi mode 50/125 um、62.5/125 um、100/140um;single mode 8.3/125 um、9/125um、10/125um
• Transmission distance: MM2Km, SM20Km.
• Fiber interface type: ST

Relay

• Contact rating:DC30V@1AMax
• Fiber link fault and No voltage input alarm
• 5-pin Pluggable Screw Terminal

Power

• Input Voltage: 24VDC(9VDC~30VDC)
• 5-pin Pluggable Screw Terminal
• Support dual power backup
• Consumption:24VDC@60mA (＜1.5W)
• With DC1000V voltage isolation and reverse connect protection

Mechanical

• Dimensions:132mm×52mm×105mm(H×W×D)
• Casing: IP30 protection, metal case
• Installation: 35mmDIN-Rail, Wall Mounting.
• Weight:800g

Environmental

• Operating Temperature:-10℃to70℃(-40℃to85℃optional)
• Storage Temperature:-40℃to80℃
• Ambient Relative Humidity: ≤90% (non-condensing)

【Order information】
