Brand:Haray
Model:135A
Send Inquiry

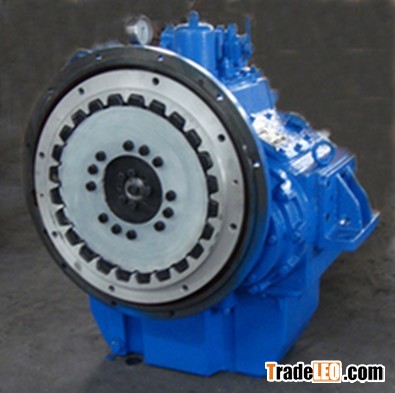

Marine gearbox
The scope of application:
Applied to marine engine speed reduction, clutch, thrust the propeller, as a part of ship propulsion power system.
Products characteristic:
1. We can suggest Transmission capacity and customize housing according to your engine.
2. Both gearbox and spare parts we manufacturer and sell, stable quality and competitive prices.
******************************************************************************************************************************************
WE HAVE LARGE STOCK TO ENSURE DELIVERY TIME IN ONE WEEK.
Many spare parts we manufacturer ourselves:
| Model | 135A | |||||
| Rated Power/ Input Speed(KW/RPM) | 100/1000-200/2000 | |||||
| Reduction Ratio | 2.03 2.59 3.04 | 3.62 4.11 | 4.65 | 5.06 | 5.47 | 5.81 |
| Transmission capacities KW(HP)/RPM | 0.100(0.136) | 0.100(0.136) | 0.093(0.126) | 0.088(0.120) | 0.077(0.105) | 0.070(0.095) |
| Power KW(HP)/1500RPM | 150(204) | 150(204) | 140(189) | 132(180) | 116(158) | 105(143) |
| Power KW(HP)/1800RPM | 180(245) | 180(245) | 167(227) | 159(216) | 139(189) | 126(171) |
| Rated propeller thrust | 30KN | |||||
| Direction of rotation of the input shaft | negative direction | |||||
| operator schema | Manual control | |||||
| Center distance | 225mm | |||||
| Housing | 6135Ca SAE 1 | |||||
| Apply to engine | 6135Ca, H615, NT-855M240 | |||||
