Model:IE43F
Send Inquiry
Item specifics
- Minlong
- Single Cylinder
- Gasoline
- Air-cooled
- recoil and hand-operated
- Chongqing
- tiller/water pump/generator etc
- MLIE43F.60
- Chongqing China (Mainland)
- L/C,T/T,Western Union
- 100 Set/Sets
- red
- 2 Stroke
- 150,000 Set/Sets per Year
Specifications

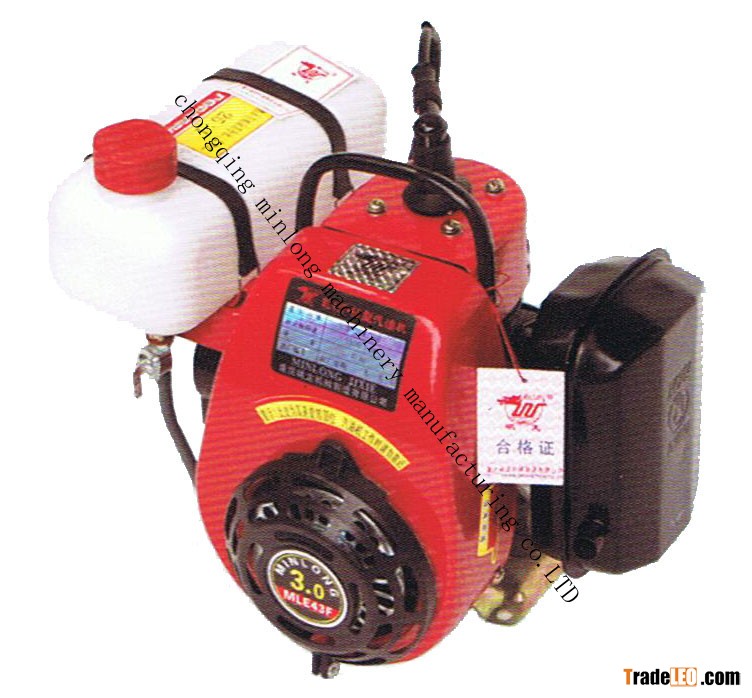

vertical engine
vertical, 2hp/1.5kw/5500rpm
forged crankshaft
iron cast cylinder liner
fuel: gasoline
vertical engine
THE SPECIFICATIONS
this vertical engine uses cast iron cylinder liner: greatly improve the librication effect, reduce abrasion, extend engine's life;
uses forged cranks shaft and aluminum block construction.
MODEL | MLIE43F8-60 | |
TYPE | Vertical, single-cylinder, forced air-cooled, two stroke | |
Compression ration | 7.6:1 | |
Start model | Hand-operated | |
Ignition model | CDI | |
Rated power | 2Hp/1.5kw | |
Rated power | 3Hp/2.2kw | |
Max torque | 3.2N.m/4000rpm | |
Rated speed | 5500rpm | |
Fuel consumption | 544g/kw.h | |
Fuel tank | 2.5 L/0.66 | |
Weight | 14.5kg | |
Dimension | 397x321x328mm/15.6"x12.6"x13" | |
Packing size | 410x345x335mm/16.1"13.6"x14" | |
20GP/40GP | 506sets/1139sets | |
