Polyurethane timing belt types: open access, double sided timing belt. The opening band: opening band finished for a continuous length, with both sides parallel to the wire core. Standard roll length of 50 or 100 meters of the access into the ring Interface with: ring belt is made ??according to the characteristics of thermoplastic processing by the opening band, can be of any length connected into a ring with. Its interface design or V-shaped belt interface can withstand a stronger pull. Mechanical properties: a dimensional stability of a pre-tension a low noise, a highly wear-resistant elasticity of several straight line speed up to 80 m / sec and chemical properties: an anti-aging, water solution, anti-ultraviolet UVA, anti-ozone an operating temperature : -30 ℃ ~ 80 ℃ short period of time can withstand up to 100 ° C and highly resistant to oil, oil ester of a highly wear-resistant resistant to most acid and alkali corrosion.

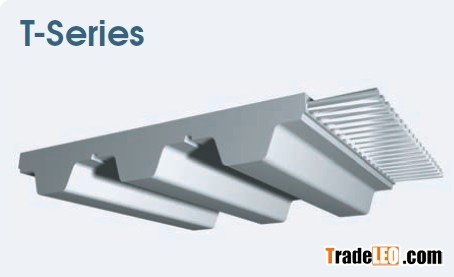

T-Series: T2 T2.5 T5, T10 T20        - Standard timing belt conveying and moderate power transmission applications      AT Series: AT3 AT5 AT10 AT20        - High-strength, power transmission and high-precision positioning applications the timing belt.       ATN series: ATN10 ATN12.7 ATN20       - The most advanced systems, the use of the timing belt with the cavity and specially designed blade allows you to configure the Department of Mechanical Engineering       ATL series: ATL5 ATL10 ATL20       - Special belt with with the highest accuracy.       ATP Series: ATP10 ATP15      - Specially designed belt replacement of the existing OEM equipment.       Imperial Series: XL H-The MXL L, XH       - Conveying the application of standard timing belt       ARC-Power Self-Tracking Series:        - Arc gear synchronous belt with the most unique timing belt available.      BAT10 BAT15 BATK10 BATK15 Double-Sided Double Sided Timing series:      - Double-sided timing belt transmission, two-sided force.       T5-DL T10-DL T20-DL H-DL / T1/2-DL       HTD timing belt series:     - Polyurethane and steel close link from the HTD belt.      HTT2.5 HTD 3M HTD 5M HTD 8M HTD 14M      - STD timing belt series: S5M S8M
