Brand:Jinqiu or OEM
Send Inquiry

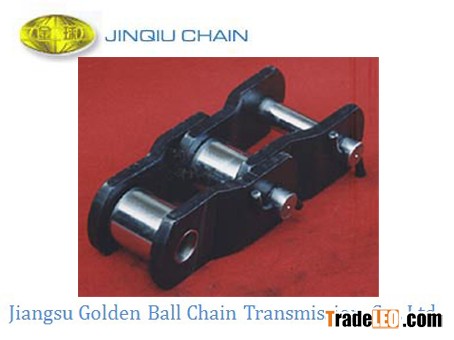

| bearing chain | ||||||||||||
| chain no. | pitch | inner pitch width | roller dia. | pin dia. | plate height | platform height | lateral separation | attachment hole distance | attachment hole dia. | roller wheel dia. | weight(kg/m) | breaking load(KN) |
| 1 | 360 | 62 | 42 | 28 | 70 | 35 | 90 | 70 | 19 | 110 | 25.3 | 350 |
| 2 | 400 | 63 | 42 | 28 | 65 | 37.5 | 89.5 | 70 | 18 | 110 | 36.2 | 224 |
| 3 | 400 | 89 | 67 | 45 | 98 | 34 | 101 | 70 | 18 | 130 | 43.12 | 400 |
| 4 | 400 | 80 | 50 | 36 | 100 | 30 | 98 | 70 | 18 | 130 | 54.6 | 600 |
| 5 | 400 | 84 | 66 | 32 | 100 | 50 | 100 | 70 | 17 | 130 | 44 | 500 |
