Product Description:

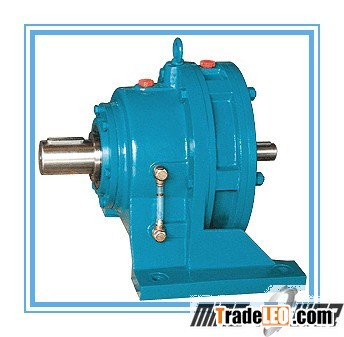

A cycloidal drive or cycloid speed reducer is a mechanism for reducing the speed of an input shaft by a certain ratio. Cycloid speed reducers are capable of high ratios in compact size.

It has models of BW, BWD, XW and XWD. It is an update transmission machine designed with the cycloid pin wheel clenching and less teeth engagement mechanism. It is superior to traditional gear mechanisms, since it only operates with rolling force and is not exposed to shear force. It can achieve high reduction ratios, without sacrificing efficiency, compact and co-axial design.

Technical Specifications:

1. Torque: 25N.m~23400N.m
2. Input speed: 1000r/min, 1500r/min
3. Output speed: 11r/min~167r/min
4. Ratio:9~87
5. Power:0.12KW~75KW
6. Mounting type: Horizontal, Vertical, Flange, Motor connecting

Applications:

1) Cranes                                                                 2) Paper Machinery

3) Extruders                                                             4) Textile Machinery

5) Steel Plants                                                          6) Conveyor Systems

7) Sugar Plants                                                         8) Chemical Machinery

9) Machine Tools                                                      10) Packaging Machines

11) Food Processing                                                  12) Construction Machinery

……

Characteristics:

1. High speed ratio and high efficiency
2. Compact structure and small volume
3. Smooth operation and low noise
4. Reliable and long service life
5. Strong overload ability and a small moment of inertia

Regarding the contour and installation dimensions, detailed specifications, please kindly email us or leave us a message through the web.

Thanks a lot for your interest and welcome your enquiry to our price and quality!
