Model:DXT
Send Inquiry
Application:

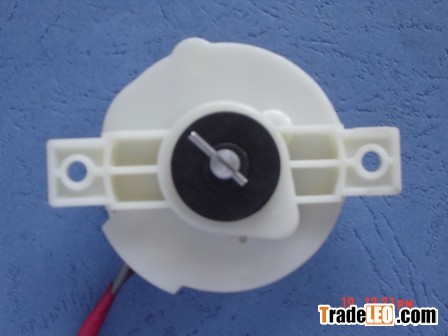

It is a key acceossry of washing machine.
The timer is driven by spring.
The principal axis can control the cyclic process of clockwise,
stop and counter clockwise at specified angle and time.
Features:
This washing machine timer is designed as all-plastic structure.
It has the advantages of novel structure.
Exact time-operating and convenient used and installing
1.Model:DXT15SF-01 | |
2.Rated:AC250V 2.5A 60HZ | |
3.Operating Temperature:-10-+55 | |
4.Operating Direction: Clockwise | |
5.Operating Torque: ≤0.883N.m | |
6.Insulation Resistance:≥100MΩ | |
7.Electrical Intensity: 1500V/1min | |
8.Setting Time Range:15min ±2 min/310º | |
9.Use Life: ≥10000times |
