Technical Parameter of Chain Rotary Die-Cutting Machine:
| Serial | Name of parameter | Unit | Specification | ||
| 1 | Maximum speed | pieces/min | 60 | 60 | 60 |
| 2 | Valid grinder slicing size | mm | 1200×1770 | 1200×1970 | 1200×2170 |
| 3 | Maximum size of paperboard | mm | 1270×1190 | 1270×2100 | 1270×2300 |
| 4 | Minmum size of paperboard | mm | 350 | 350 | 350 |
| 5 | scope of adjusting cardboard | mm | 2-8 | 28 | 2-8 |
| 6 | Shape size | mm | 3000×3000×1350 | 3000×3200×1350 | 3000×3400×1350 |
| 7 | General power | kw | 12 | 12 | 12 |

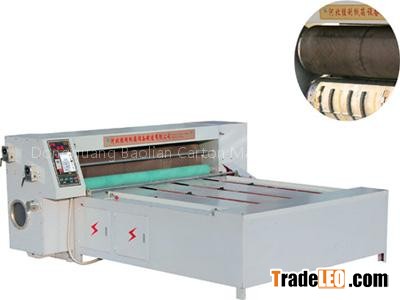

Features of Chain Rotary Die-Cutting Machine:
The Chain Rotary Die-Cutting Machine adopts chain provide and double roller cycle roll, takes carton piece though many working procedure of disport, roll line, cut horn, hit especial hole etc, it's ideal equipment of effect all processing carton piece working procedure one time. This die-Cutting machine has grind cut E style corrugating cardboard, glue roller line speed auto repair and glue sheath restore function.Grind roller 360 electric adjust. It has grind high nicety and operation convenience and glue sheath using long life and low cost.
