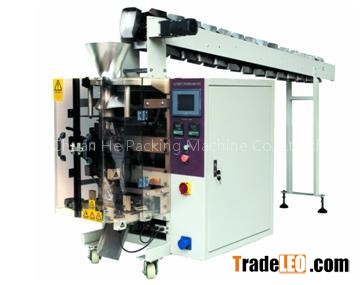

Model:CH-200
Send Inquiry
Technique Specification
| Type | CH-200 |
| Air consumption | 2.5m3/min 6kg/cm2 |
| Max. Film width | 120-380mm |
| Bag length | 80-240mm |
| Bag width | 50-180mm |
| Max. extend diameter of coiled material | Max.300mm |
| Packing speed | 5-70bag/min |
| Packing thickness | 0.04-0.08mm |
| Power supply specification | 220V,50/60Hz,2.4KAV |
| Total weight of machine | 350kg |
| Machine size | (L)880*(W)810*(H)1350mm |
Complete set of this machine
1.CH-200 main machine
2.Bucket chain conveyor
3.Finished product conveyor
Function and structure characteristics
1.Feeding and packaging with manual metering
2.The bucket chain conveyer is convenient on feeding . Tha award card , award or several kinds of material can be packed at the same time .
3.No empty bags will be delivered when there is no material , decreasing waste.
4.Complete set of this system is economical and practical .
Application scope
Suitable for frangible goods and those goods with are hard on auto metering , such as : potato chips , steam bread chips , crispy rice , fruit jelly , tea-leaf , boiled dumpling , rice dumpling , etc .
