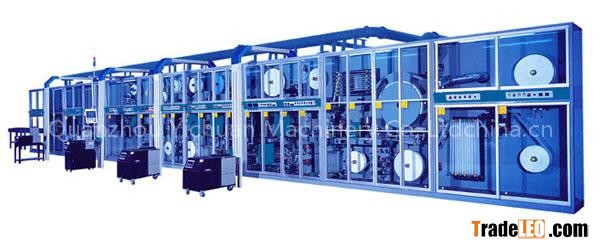

YC-HD600  Panty Shield Making Machine

Main Technical Parameter:
1. Designed production speed: 800 PCS/min;
2. Stable production speed: 600 PCS/min;
3. Machine power: three-phase five-wire (380V, 50HZ);
4. Machine capacity: about 120KW (exclude hot melt applicators and air compressor);
5. Machine size: 18.0m*7.0m*3.5m (L*W*H) (include hot melt applicators and air compressor);
6. Machine weight: about 18T (whole production line );
7. Air pressure: 0.6-0.9Mpa;

 Main Function Features:
1. Frequence motor driving consisted of universal shafts ,gear boxes,differential devices and synchronous belts (main electric motor driving independent );
2. Frequence unwinding, passive-tension control and splicing for raw materials;
3. Auto reject for wasted sanitary napkin, auto detect & alarm for material exhausted;
4. Phase adjusting during running without stop;
5. Products auto counting & output in line.
6. panty liner machine
