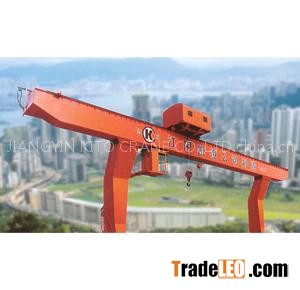

MDG Mono Girder single hook gantry crane

MDG Mono Girder single hook gantry crane is equipped with CD,MD,HJ types of hoists, and is widely used at mining, metallurgy, manufacturing workshops, ocean ports and railway stations to convey or load the heavy equipment or raw materials. This type crane features light self weight, inexpensive and small windward area etc. Operation grade: A5

Six lifting weight packages: 5t,10t,16/3.2t,20/5t,32/5t,5/10t    Power Supply (V;Hz): 380;50

Five traversing spans: 18m,22m,26m,30m,35m        I bar track(kg/m): 43;50

Lifting height(m): 11, 12, 12/14, 12/11            Lifting speed(m/min): 12.5, 9.7, 9.5/19.5, 7.2/19.4

Trolly rotation (m/min): 36.6, 38.6, 39.3, 39.3    Operation grade: A5

Open visual field from within control cabin, together with overload limiter, cam control gear and air conditioner make operator feel very comfortable and relaxed at work time.
