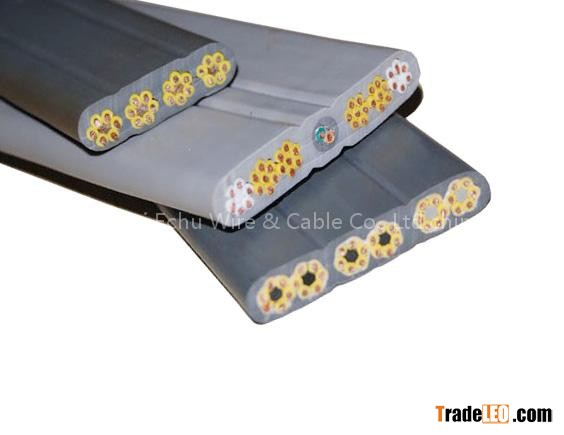

Flat shield traveling cable
Flat traveling cable with Shield
Flat traveling cable with Steel supporting
Flat shield traveling

PRODUCT STANDARD
GB5023.6, IEC60227-6, EN50214

PRODUCTION APPLICATION
Elevator suspension traveling cable for internal and panoramic elevators.

STRUCTURE
Condutor-Fine strands of bare copper wire,
                  acc. to VDE295CLASS 5
Insulation: special PVC
Colour-yellow, white, orange with black number with white digital coding
Bearing: steel rope
Outer sheath: flexible PVC, cold resistance, flame resistance
Colour: Grey (RAL 7001)

RATED VOLTAGE
This product is fit for the rated 300/500V and below.

WORK TEMPERATURE:
Used under the normal conditions,the conductor's temperature is at 70.The cable is available at -15 to 40 environment.

OTHER ATTENTIONS
Without steelFree suspension length not exceed 80 meters,and the lift speed must not exceed 4m/s.

With steel Free suspension length exceed 80 meters,and the lift speed must not exceed 10m/s.
