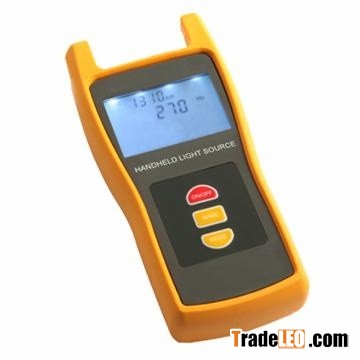

Brand:JILONG
Model:KL-360
Send Inquiry
Feature
Backlight LCD display
High stable output power
CW,270Hz,1KHZ,2KHZ modulation output
Specifications |
Type | KL-360 |
Wavelength | 1310/1550 nm |
Emitter Type | FP-LD |
Output Power | -7 dBm |
Spectral Width | ≤10 nm |
Output Stability | ±0.05dB/15min; ±0.1dB/8hours |
Modulation Frequencies | CW,270Hz,1KHz,2KHz |
Optical Connector | FC/PC |
Power Supply | Alkaline Battery(3 AA 1.5V) |
Battery Operating Time | 45 h |
Operating Temperature | -10～+60 ℃ |
Storage Temperature | -25～+70 ℃ |
Dimension | 152mm(W)×74 mm(D)×26 mm(H) |
Weight | 180 g |
