Brand:FAG
Model:6201-C-2Z
Send Inquiry

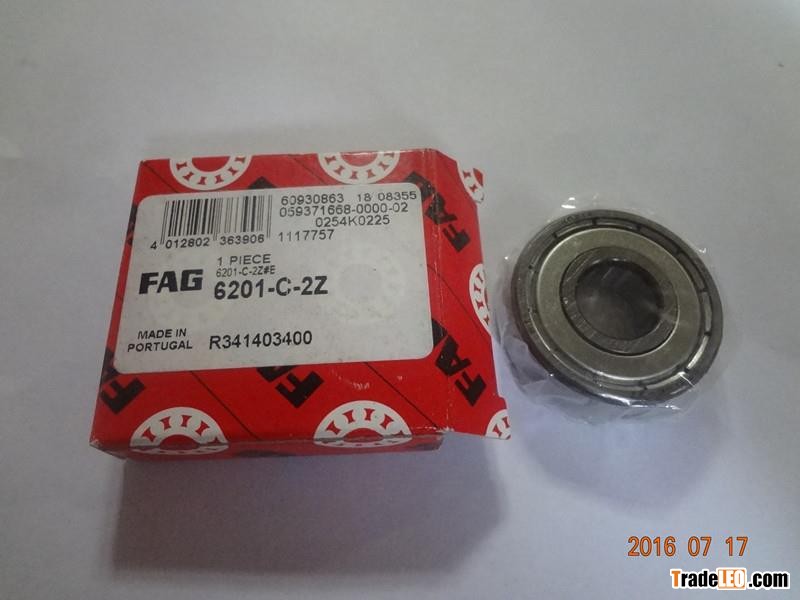

Deep groove ball bearings 6201-C-2Z
modified internal construction (Generation C), main dimensions to DIN 625-1, gap seals on both sides
| d | 12 mm | ||
| D | 32 mm | ||
| B | 10 mm | ||
| D2 | 28,2 mm | ||
| Da max | 27,8 mm | ||
| d2 | 17,2 mm | ||
| da min | 16,2 mm | ||
| ra max | 0,6 mm | ||
| rmin | 0,6 mm | ||
| m | 0,039 kg | Mass | |
| Cr | 7600 N | Basic dynamic load rating, radial | |
| C0r | 3100 N | Basic static load rating, radial | |
| nG | 31500 1/min | Limiting speed | |
| nB | 24600 1/min | Reference speed | |
| Cur | 208 N | Fatigue limit load, radial |
| d | D | B | |
| mm | mm | mm | |
| 629-C-2Z | 9 | 26 | 8 |
| 6200-C-2Z | 10 | 30 | 9 |
| 6201-C-2Z | 12 | 32 | 10 |
| 6202-C-2Z | 15 | 35 | 11 |
| 6203-C-2Z | 17 | 40 | 12 |
| 6204-C-2Z | 20 | 47 | 14 |
| 6205-C-2Z | 25 | 52 | 15 |
| 6206-C-2Z | 30 | 62 | 16 |
| 6207-C-2Z | 35 | 72 | 17 |
| 6208-C-2Z | 40 | 80 | 18 |
| 6209-C-2Z | 45 | 85 | 19 |
| 6210-C-2Z | 50 | 90 | 20 |
