Brand:HENGLI LZ
Model:22206 / 22206K / 22206W33
Products

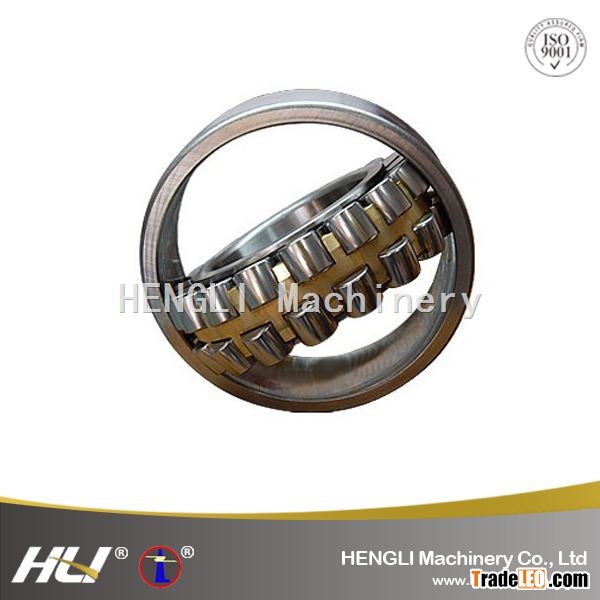

Professional Design Spherical Roller Bearing 22206 / 22206K / 22206W33 High Quality Spherical Roller Bearing
| Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass | |||||
| d | D | B | C | Co | kg | |||
| 22206 | 22206 K | 22206 W33 | 30 | 62 | 20 | 30.5 | 38.2 | 0.30 |
| 22207 | 22207 K | 22207 W33 | 35 | 72 | 23 | 45.2 | 59.5 | 0.43 |
| 22208 | 22208 K | 22208 W33 | 40 | 80 | 23 | 49.8 | 68.5 | 0.55 |
| 22209 | 22209 K | 22209 W33 | 45 | 85 | 23 | 52.2 | 73.2 | 0.59 |
| 22210 | 22210 K | 22210 W33 | 50 | 90 | 23 | 52.2 | 73.2 | 0.87 |
| 22211 | 22211 K | 22211 W33 | 55 | 100 | 25 | 60.0 | 87.2 | 0.86 |
| 22212 | 22212 K | 22212 W33 | 60 | 110 | 28 | 81.8 | 112.0 | 1.22 |
| 22213 | 22213 K | 22213 W33 | 65 | 120 | 31 | 88.5 | 128.0 | 1.63 |
| 22214 | 22214 K | 22214 W33 | 70 | 125 | 31 | 95.0 | 142.0 | 1.66 |
| 22215 | 22215 K | 22215 W33 | 75 | 130 | 31 | 95.0 | 142.0 | 1.75 |
| 22216 | 22216 K | 22216 W33 | 80 | 140 | 33 | 115.0 | 180.0 | 2.20 |
| 22217 | 22217 K | 22217 W33 | 85 | 150 | 36 | 145.0 | 228.0 | 2.80 |
| 22218 | 22218 K | 22218 W33 | 90 | 160 | 40 | 168.0 | 272.0 | 4.00 |
| 22219 | 22219 K | 22219 W33 | 95 | 170 | 43 | 212.0 | 322.0 | 4.20 |
| 22220 | 22220 K | 22220 W33 | 100 | 180 | 46 | 222.0 | 358.0 | 5.00 |
| 22222 | 22222 K | 22222 W33 | 110 | 200 | 53 | 288.0 | 465.0 | 7.40 |
| 22224 | 22224 K | 22224 W33 | 120 | 215 | 58 | 342.0 | 565.0 | 9.20 |
| 22226 | 22226 K | 22226 W33 | 130 | 230 | 64 | 408.0 | 708.0 | 11.20 |
| 22228 | 22228 K | 22228 W33 | 140 | 250 | 68 | 478.0 | 805.0 | 14.50 |
| 22230 | 22230 K | 22230 W33 | 150 | 270 | 73 | 508.0 | 875.0 | 18.57 |
| 22232 | 22232 K | 22232 W33 | 160 | 290 | 80 | 879.0 | 1220.0 | 22.80 |
| 22234 | 22234 K | 22234 W33 | 170 | 310 | 86 | 983.0 | 1380.0 | 29.20 |
| 22236 | 22236 K | 22236 W33 | 180 | 320 | 86 | 1040.0 | 1490.0 | 30.00 |
| 22238 | 22238 K | 22238 W33 | 190 | 340 | 92 | 1150.0 | 1700.0 | 37.30 |
| 22240 | 22240 K | 22240 W33 | 200 | 360 | 98 | 1290.0 | 1910.0 | 43.20 |
| 22244 | 22244 K | 22244 W33 | 220 | 400 | 108 | 1560.0 | 2260.0 | 59.50 |
Main Features
Spherical Roller Bearings are used in countless industrial applications, Where there are heavy loads,moderate speeds and possibly misalignment.
Factory
LUAN Rolling Bearing Co., Ltd, was established in 1970 and is accredited by the Chinese Ministry of Machine Building.We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products such as Needle Roller Bearings, Spherical Plain Bearings, Rod Ends Bearings, Ball Joint Bearings, Tapered Roller Bearings, Wheel Hub Bearings & Non-Standard Bearings.
1. Neutral PackingBearing + Neutral Plastic Bag(Tube) or Neutral Box + Neutral Carton + Pallet;
2. Industrial PackingBearing + Industrial Kraft Paper + Carton + Pallet;
3. Commercial PackingBearing + Plastic Bag + Color Box + Carton + Pallet;
4. As Your Requirement
Delivery
1. Send by Sea.
2. Send by Air Transport.
3. Express
Payment
1. 100% BY T/T AFTER RECEIVING THE COPY OF B/L.(for old client only);
2. 30% - 50% BY T/T IN ADVANCE, 50% - 70% BALANCE BY T/T AFTER RECEIVING THE COPY OF B/L;
3. L/C AT SIGHT.
Factory Production
FAQ
Q1 - What is our Advantages?
A - Manufacturer - Do it only with the Best;
- Your choice make different;
Q2 - Our Products
A - Spherical Roller Bearing, Cylindrical Roller Bearing, Needle Roller Bearing, Cam Follower, Thrust Bearing
- Spherical Plain Bearing, Rod End, Ball Joint, Wheel Hub, Tapered Roller Bearing.
Q3 - Process of our production
A - Heat Treatment - Grinding - Parts Inspection - Assembly - Final Inspection - Packing
Q4 - How to customize bearing(non-standard) from your company?
A - We offer OEM,Customized(Non-standard) service and you need to provide drawing and detailed Technical Data.
Q5 - What should I care before installation?
A - Normally, the preservative with which new bearings are coated before leaving the factory does not need to be removed; it is only necessary to wipe off the outside cylindrical surface and bore. if the grease is not compatible with the preservative, it is necessary to wash and carefully dry the bearing.
- Bearings should be installed in a dry, dust-free room away from metal working or other machines producing swarf and dust.
Q6 - How to stock and maintenance my bearings right?
A - Do not store bearings directly on concrete floors, where water can condense and collect on the bearing;
- Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidity or sudden and severe temperature changes that may result in condensation forming;- Always put oiled paper or, if not available, plastic sheets between rollers and cup races of tapered roller bearings.
