YRT100 Rotary Table Bearings (100x185x38mm) Machine Tool Bearing High Speed NC rotary table d
2016-10-24 05:48 Views:50
Price:Negotiable
Brand:INA
Model:YRT100
Send Inquiry
| YRT100 Rotary Table Bearings (100x185x38mm) Machine Tool Bearing High Speed NC rotary table dedicated |
| A . Rotary Table Bearings Parameters |
| Brand- | BYC |
| Model number- | YRT100 |
| Inner ring(mm)- | 100 |
| Outer ring(mm)- | 185 |
| Width(mm)- | 25 |
| Weight(Kg)- | Fixing Hole(Outer ing) |
| Materials- | GCR15/GCR15SiMn |
| Precision grade- | P5/P4/P2 |
| Lubrication type- | Grease lubrication |
| Rotating part- | Inner ring/Outer ring |
| Load direction- | Multi-load |

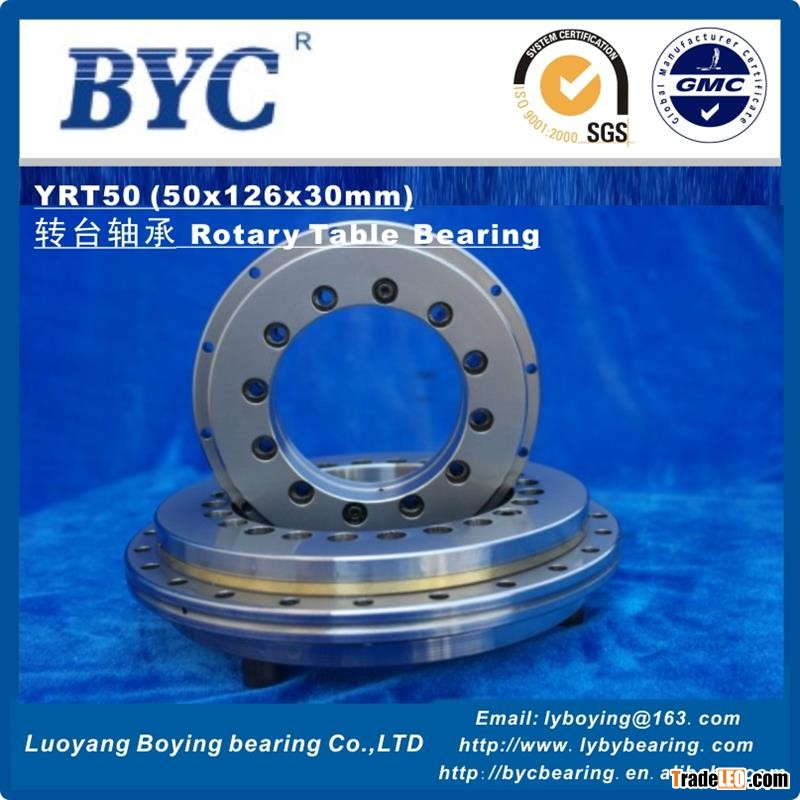

| Structure- | Integrated Inner/Outer Ring | Product Features | YRT bearings (rotary table bearings) are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial p reload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy. | | Series Introduction | YRT bearings (rotary table bearings) are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial p reload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy. | | Series Model No. | YRT50、YRT80、YRT100、YRT120、YRT150、YRT180、YRT200、YRT260、YRT325、YRT395、YRT460、YRT580、YRT650、YRT850、YRT950、YRT1030、YRT1200 | | Applications | Product Application
?Precision machine tools
?precision Turntable, NC rotary table
?Rotation part of Machine tools
?Inspection instrument,Medical equipment
?Indexing plate of other precision machines etc | |
