Brand:GUYUE
Model:30217

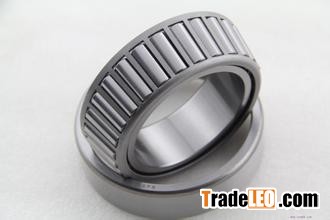

Engine taper roller bearing 30217
Details:
1.Less coefficient of friction, High limiting speed, Large size range, Variations of structure.
2.Tapered Roller Bearings are designed such like cup. Cone and rollers have tapered surfaces whose apexes converge at a common point on the bearing axis.
3.Single-row tapered roller bearing is able to carry radial and axial load in one directions simultaneously because an axial component of produced when this type of bearings loaded radically, two bearings are used together facing one another, or two or more bearings are matched and used.
Features:
Their special feature is that they can be disassembled and mounted separately without the outer ring, i.e. inner ring and roller rim independently
Due to qualitatively machined surfaces, the level of friction and noise has been reduced to minimum
Their construction enables that operating loads are transmitted in axial and radial directions at the same time
| Taper Roller | d | D | T |
| Model | mm | mm | mm |
| 33108 | 40 | 75 | 26 |
| 33109 | 45 | 80 | 26 |
| 33110 | 50 | 85 | 26 |
| 33111 | 55 | 95 | 30 |
| 33112 | 60 | 100 | 30 |
| 33113 | 65 | 110 | 34 |
| 33114 | 70 | 120 | 37 |
| 33115 | 75 | 125 | 37 |
| 33116 | 80 | 130 | 37 |
| 33117 | 85 | 140 | 41 |
| 33118 | 90 | 150 | 45 |
| 33122 | 110 | 180 | 56 |
Application:
For mounting wherever axial and radial loads are expected
For most parts for torque transmission
| Brand | Trieternal Bearing or OEM | ||
| Name | Taper Roller Bearing | ||
| Model | Metric:30200,30300,31300,31000,32200,32300,33000,33200 series | ||
| Inch:JL,JLMS,LS,LM,LMS,MS,HMS series | |||
| Material | GCr15 | Certificate | ISO9001:2001 |
| Precision | P0, P5, P6 | ||
| Bore Size: | 20mm-190mm | Outside diameter | 40mm-320mm |
| Clearance | C0,C1,C2,C3,C4,C5 etc. | ||
| Cage Type | Brass cage or Stainless cage | ||
| Seals Type | RS, 2RS, R2, Z, 2Z, 2RZ etc | ||
| Package | pallet, wooden case,industrial package or as customers' requirement | ||
| Price | FOB, CFR, CIF | Delivery Time | 15-30days |
