Brand:ZS
Model:AISI 52100 38.1mm 1-1/2" G28

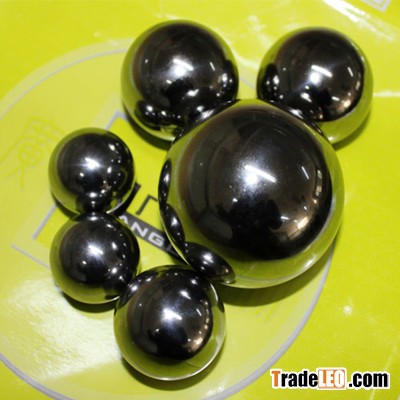

chrome steel ball
Chrome steel balls are used in many industrial applications , where their properties of high capacity and fine surface finish are required. We offer chrome steel balls in sizes ranging from 3.1750mm-152.4000mm. We provide chrome steel balls in various grades, the highest being G10 and the lowest G600
High Carbon Chrome Steel Ball for Bearing
one) Products information
| Products Name | Chrome steel ball |
|
| Products Sizes | 3.1750mm(1/8")to 152.4000mm(6") | |
| Products Material | GCr15 :AISI E52100,DIN100Cr6,JIS SUJ2 (Smaller than 60mm ) GCr15SiMn:SUJ3,100CrMn6(Bigger than 60.3250mm /2"3/8") | |
| Products Use | Various bearing .etc. |
Chrome steel ball ,or high carbon chrome steel ball is actually an alloy steel ball which owes its enhanced properties to the presence of lager proportions of special alloying elements such as chrominum , manganese and silicon than are ordinarily present in carbon steel .
It is a universal material for many applications, such as, ball and roller bearing industry and for a variety of automobile applications. Due to through hardening, it has an excellent surface quality , superior wear resistance ,hard hardness and high load bearing capacity.
TWO ) Material Comparison List
| State | China | Japan | America | Germany | France |
| Standard | GB | JIS | AISI | DIN | NF |
| Title | GCr15 | SUJ-2 | 52100 | 100Cr6 | 100C6 |
| Title | GCr15SiMn | SUJ-3 |
| 100CrMn6 |
|
THREE ) Chemical composition
| Steel NO. | Chemical Composition% | |||||
| C | Si | Mn | P | S | Cr | |
| GCr15 | 0.90-1.05 | 0.15-0.35 | 0.20-0.40 | ≤0.027 | ≤0.020 | 1.35-1.65 |
| GCr15SiMn | 0.95-1.05 | 0.40-0.65 | 0.90-1.20 | ≤0.027 | ≤0.020 | 1.35-1.65 |
Detailed Product Description
Chrome Steel Ball
(1) Material:GCr15(DIN100Cr6,JIS SUJ2,AISI E52100,NF 100C6)
Grade:G10-G60
Diameter:15.8750mm-60.325mm
(2) Material: GCr15SiMn(JIS SUJ-3)
Grade: G60-G600
Diameter: 63.5000mm-152.4000mm
(3) Hardness: Less than 30mm is HRC60-66;Between 30mm and 50mm is HRC59-64;More than 50mm is HRC 58-64.
(4) Producing standards: GB/T308-2002
(5) Quality certificate: GB/T 308-2002---ISO 3290 etc.
(6) be used in various bearing and ball mill.
(7) Advantage: good quality bearing steel balls, perfect services and fast delivery at competitive price.
