Model:6203

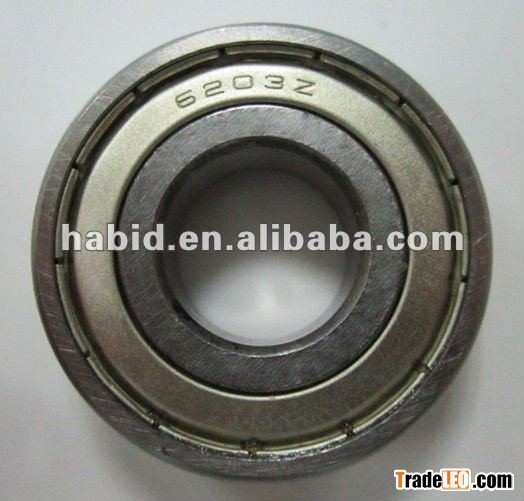

Performance Bearings 6203Z / 6203ZZ Deep Groove Ball Bearing
Product description:
| Item No | d(mm) | D(mm) | B(mm) | rmin | rimin | Cr | Cor | Weight(kg) |
| 6200 | 10 | 30 | 9 | 0.6 | 0.5 | 5.1 | 2.39 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.6 | 0.5 | 6.1 | 2.75 | 0.035 |
| 6202 | 15 | 35 | 11 | 0.6 | 0.5 | 7.75 | 3.6 | 0.045 |
| 6203 | 17 | 40 | 12 | 0.6 | 0.5 | 9.6 | 4.6 | 0.064 |
| 6204 | 20 | 47 | 14 | 1 | 0.5 | 12.8 | 6.65 | 0.104 |
| 6205 | 25 | 52 | 15 | 1 | 0.5 | 14 | 7.85 | 0.127 |
| 6206 | 30 | 62 | 16 | 1 | 0.5 | 19.5 | 11.3 | 0.2 |
| 6207 | 35 | 72 | 17 | 1.1 | 0.5 | 25.7 | 15.3 | 0.287 |
| 6208 | 40 | 80 | 18 | 1.1 | 0.5 | 29.1 | 17.8 | 0.367 |
| 6209 | 45 | 85 | 19 | 1.1 | 0.5 | 32.5 | 20.4 | 0.416 Contact Infomation
