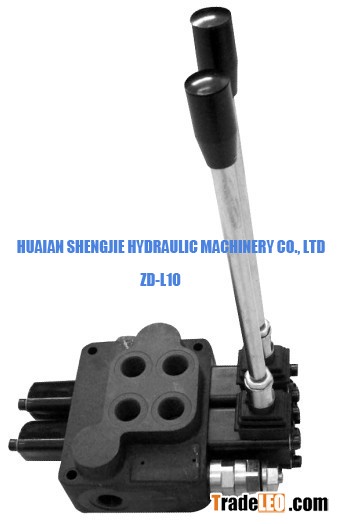

1) Item NO.: ZD-L10E-2OT
2) simple structure & convenient maintain
3) well to be opened and closed
4) control leak well
5) long usage
6) Per different customers' requirements, we may install over-flow valve, over-load valve, single way valve and oil offset valve etc.
7) direction changeable valve has A, O, Y, P functions etc.
8) This kind with 2 levers and is widely applied in the fields of diggings, metallurgy, light industry, agricultural machinery etc.
9) model instruction:
   ZD: product code;
   L: thread connection, the size is M18*1.5;
   10: diameter 10mm; corresponding flow is 40L/min;
   E: working pressure, 16mpa; (if F pressure is 20MPa)
   2: 2 levers;
   O: when the valve is in neutral position, the oil is circulated back into the tank;
   T: spring return;
