GPA With Nylon Elastomer Resin Hose

2016-10-23 08:39 Views:163

Price:Negotiable

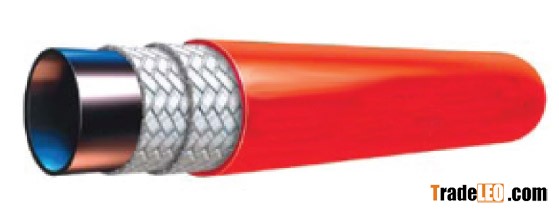

Steel wire reinforcement nylon elastomer resin hose(GPA)

Steel wire reinforcement nylon elastomer resin hose is mostly used for high pressure and liquid transmission of auto industry, engineering mechanism and lift transfer echanism.

With be oil, heat and aging resistant and can endure high pressure and be provided with excellent impulse performance, The product can be used as special high voltage spry-paint hose.

Technology parameters of wire reinforcement nylon elastomer hose(GPA)

Nominal Inside Radius(nom. I.R)mm	reinforcement layer number	Outside Radius(O.R)mm		Maximum Operating Working PressureMPa		Minimum Burst PressureMPa		Minimum Bending Radiusmm
Nominal Inside Radius(nom. I.R)mm	reinforcement layer number	GPA model	XPA model	GPA model	XPA model	GPA model	XPA model	GPA model	XPA model
4	Ⅰ	11.5	9	38	20	152	80	85	55
4	Ⅱ	13	10	42	25	168	100	85	55
6	Ⅰ	13	10	31	11.3	124	45.2	100	70
	Ⅱ	14.5	11	39	16	156	64
	Ⅲ	15.5	12	43	20	172	80
8	Ⅰ	15.5	13	28	8.2	112	32.8	115	85
	Ⅱ	17	14	35	12.5	160	49
	Ⅲ	19	15	45	15	180	60
10	Ⅰ	17.5	16	22	7	88	28	125	95
	Ⅱ	19.5	17.5	29	11	116	44
	Ⅲ	21.5	19	36	13	144	52
12	Ⅰ	20	19	18	6.8	72	27.2	180	120
	Ⅱ	22	21	27	10	108	40
	Ⅲ	24	23	30	12	120	48
16	Ⅰ	24	23	14	5	56	20	205	150
	Ⅱ	26	25	22	8	88	32
	Ⅲ	28	26.5	24	10	96	40
19	Ⅰ	27.5	26	11	4	44	16	240	170
	Ⅱ	29.5	28	18	7.6	72	30.4
	Ⅲ	31.5	30	20	8.8	80	35.2
22	Ⅰ	31	32	11	3.8	44	15.2	260	200
22	Ⅱ	33	34	13	7.2	52	28.8	260	200
25	Ⅰ	35	35	8.5	3.7	34	14.8	300	270
	Ⅱ	37	37	13	6.9	42	27.6
	Ⅲ	39	39	16	7.8	64	31.2
32	Ⅰ	41	38	8	2.6	32	10.4	350	310
	Ⅱ	43	40	11	4.5	44	18
	Ⅲ	45	42	14	5.3	52	21.2
remark:Steel wire reinforcement nylon elastomer resin hose(GPA) Fibre reinforcement nylon elastomer resin hose(XPA)
