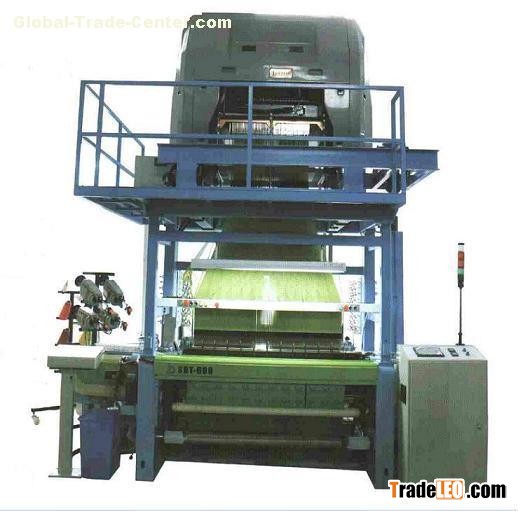

Model        :  SBT-600 high speed rapier loom

Weaving width :  value="1260" tcsc="0" unitname="mm" w:st="on">1260mm  (value="1680" tcsc="0" unitname="mm" w:st="on">1680mm ,value="1300" tcsc="0" unitname="mm" w:st="on">1300mm , value="1760" tcsc="0" unitname="mm" w:st="on">1760mm , value="2300" tcsc="0" unitname="mm" w:st="on">2300mm)

Repeats       :  6 repeats for taffeta  ( 1 repeat = value="20" tcsc="0" unitname="cm" w:st="on">20 cm )

               12 repeats for satin   (1 repeat = value="10" tcsc="0" unitname="cm" w:st="on">10 cm)

special field deploys the jacquard weave model rapier loom own the special field jacquard interface,The patent type beating-up attracts latitude organization. The weft density adapting to height is woven.

MAX.SPEED  :  600 RPM

Control system :  comtrolled with PLC and touch panel display

Wrap let-off    :  electronic let-off motion with tensioning device.

Take up       :  electronic take up

Weft density   :  electronic density adjustment from 6 to 200 picks/cm

Weft selector  :  new electronic controlled by jacquard 8 colours (option up to 16 colours )

Weft finding   :  automatic weft fingding system with variable program ,no need use solw-motion cluth and slow-motion motor (no reverse device ).

Warp beam   :  diameter of value="800" tcsc="0" unitname="mm" w:st="on">800 mm

Cloth take up  :  diameter of value="450" tcsc="0" unitname="mm" w:st="on">450 mm (max)

Power       :  6.5 kw,control the host motor, realize driving, the slow train, weft finding and speed change by the frequency transformer

Dimension   :  value="4100" tcsc="0" unitname="mm" w:st="on">4100 mm(horizontal stroke) X value="1900" tcsc="0" unitname="mm" w:st="on">1900 mm(even if) X value="3800" tcsc="0" unitname="mm" w:st="on">3800 mm (high)

Weight      :  about value="3600" tcsc="0" unitname="kg" w:st="on">3600 KG

Jacquard

Model     :  JIABAO JB-1152 other jacquard can be selected

Hooks     :  1152 hooks

Hames     :  carbon fibre with spring pull down, junction is covered by plastic sheaths

Power     :  1.5 kw

Weight    :  about value="800" tcsc="0" unitname="kg" w:st="on">800 KG

Label special field forming system

Control system  :  integration is controlled by PLC and touch panel, handle a simplicity

Thermal cutting  :  constant current cutting knife, with transformer supplying AC electricity safely

Thermal setting  :  a molding aluminium alloy calibrator,PID charges the temperature

Installation     :  machine has been setting up before shipment with warp beam on it
