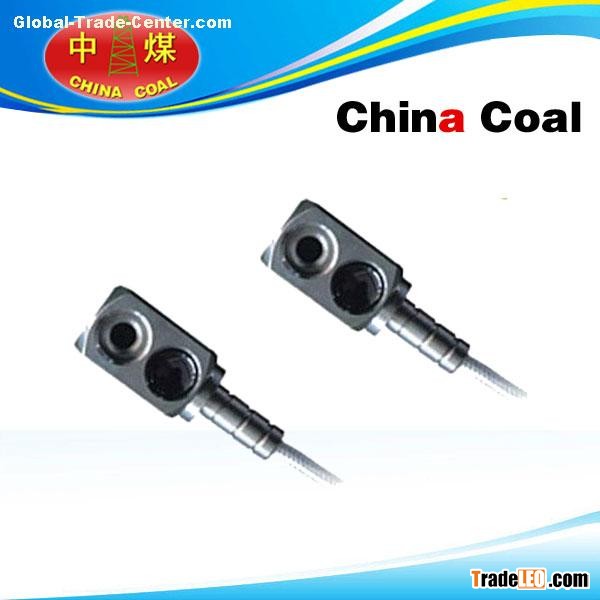

GWP100 Mine platinum resistance sensor introduction

GWP100 mine platinum resistance sensor is mainly used for dangerous gases, the temperature of the mine detection equipment to protect the normal operation of equipment.
Working principle; sensor resistance value is converted to temperature changes, isolation transmitter converts the resistance value signal through PLC control.

GWP100 Mine platinum resistance sensor parameter

Capacity: 24 v / 0.5 A；
Measuring range: when the temperature changes within the range (0 ~ 100 ℃), the resistance value between (100 ~ 138.5) Ω change;
Basic error：±2.5%
Weight and dimension
weight: 130g；
Dimension: 45 x 15 x 15 (mm)
